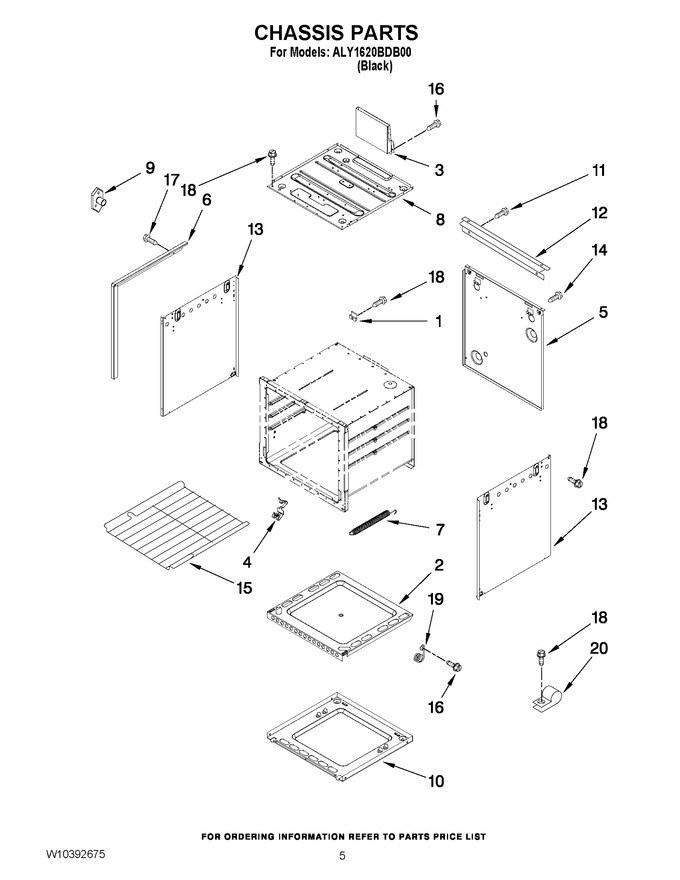

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P142-60 | Clip, Top |
|
- | |||||
| 2 | 2205F050-19 | Bottom, Oven |
|
- | |||||
| 3 | 4006W237-51 | Box, Flue |
|
- | |||||
| 4 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) |
|
Immediately | $ 11.07 | ||||
| 5 | 4002F329-51 | Back-main |
|
$ 31.01 | |||||
| 6 | 3608F150-70 | Trim, Side (left) |
|
- | |||||
| 6 | 3608F149-70 | Trim, Side (right) |
|
- | |||||
| 7 | 7803P051-60 | Spring, Door |
|
- | |||||
| 8 | 4011F460-51 | Bottom, Burner Box |
|
$ 29.69 | |||||
| 9 | 7103P109-60 | T-nut |
|
- | |||||
| 10 | 4011F325-51 | Bottom, Main |
|
- | |||||
| 11 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 12 | 3604F211-45 | Shield, Deflector |
|
- | |||||
| 13 | 4016F059-51 | Panel, Side (right) |
|
- | |||||
| 13 | 4016F060-51 | Panel, Side (left) |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 15 | 7801P155-60 | Rack, Oven |
|
- | |||||
| 16 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 17 | 7101P301-60 | Screw |
|
- | |||||
| 18 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 19 | 7112P065-60 | Clip, Oven Bottom |
|
- | |||||
| 20 | WP488366 | Clamp, Wire (Replaces: 7111P009-60) |
|
$ 10.06 | |||||
| NI | 7002P428-60 | Insulation, Back |
|
- | |||||
| NI | 7002P095-60 | Insulation, Wrap |
|
- |
