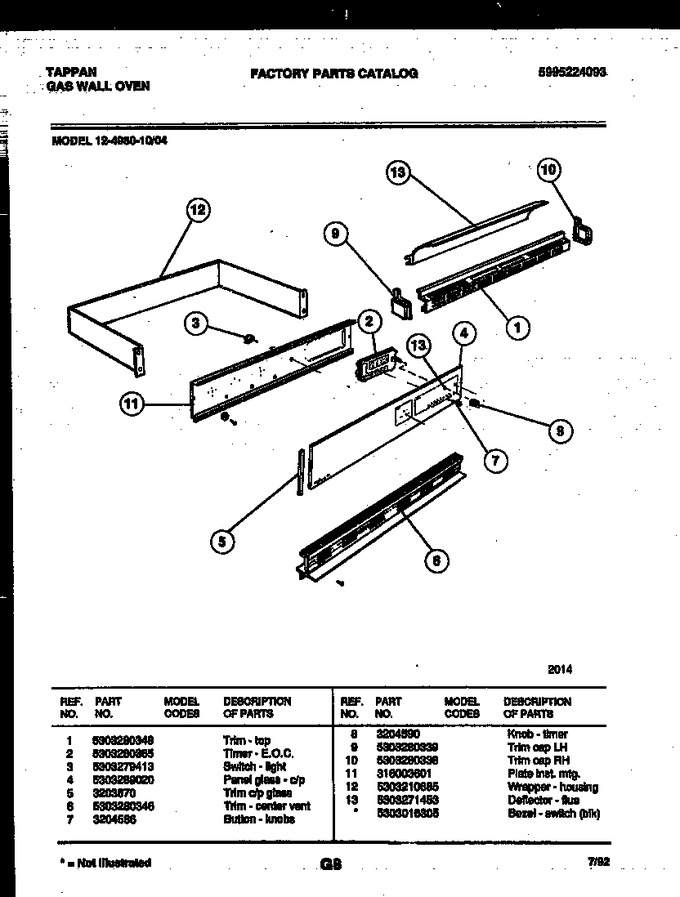

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280348 | Trim - Top |
|
- | |||||
| 2 | 5303280365 | Timer - E.o.c. |
|
- | |||||
| 3 | 5303279413 | Switch-light |
|
- | |||||
| 4 | 5303289020 | Panel Glass - C/p |
|
- | |||||
| 5 | 3203670 | Trim C/p Glass |
|
- | |||||
| 6 | 5303280346 | Trim - Center Vent |
|
- | |||||
| 7 | 3204586 | Button - Knobs |
|
- | |||||
| 8 | 3204590 | Knob - Timer |
|
- | |||||
| 9 | 5303280339 | Trim-cap (lh) |
|
- | |||||
| 10 | 5303280338 | Trim-cap (rh) |
|
- | |||||
| 11 | 316003601 | Plate Inst. Mtg. |
|
- | |||||
| 12 | 5303210685 | Wrapper - Housing |
|
- | |||||
| 13 | 5303271453 | Deflector - Flue |
|
- | |||||
| *75445 | 5303016305 | Bezel - Switch (blk) |
|
- |
