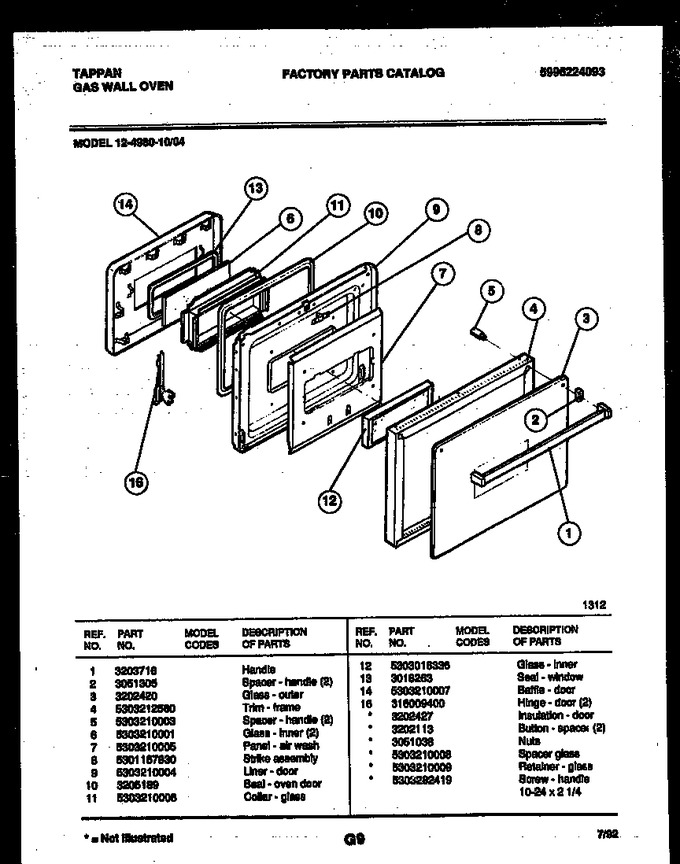

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle |
|
- | |||||
| 2 | 3051305 | Spacer, Handle, (2) |
|
- | |||||
| 3 | 3202420 | Glass-outer |
|
- | |||||
| 4 | 5303212560 | Trim - Frame |
|
- | |||||
| 5 | 5303210003 | Spacer - Handle (2) |
|
- | |||||
| 6 | 5303210001 | Glass - Inner (2) |
|
- | |||||
| 7 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 9 | 5303210004 | Liner - Door |
|
- | |||||
| 10 | 3205189 | Seal-oven Door |
|
- | |||||
| 11 | 5303210006 | Collar - Glass |
|
- | |||||
| 12 | 5303016336 | Glass-inner |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 5303210007 | Baffle - Door |
|
- | |||||
| 16 | 316009400 | Hinge - Door (2) |
|
- | |||||
| *75448 | 5303210008 | Spacer-glass |
|
- | |||||
| *75448 | 3202427 | Insulation-door |
|
- | |||||
| *75448 | 3202113 | Button - Spacer (2) |
|
- | |||||
| *75448 | 3051038 | Nuts |
|
- | |||||
| *75448 | 5303210009 | Retainer-glass |
|
- | |||||
| *75449 | 5303282419 | Screw-handle 10-24 X 2 1/4 |
|
- |
