Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 WP3390631 Screw, Bearing Insert   (Replaces: Y015408) 00 Special Order $ 7.04

002 WP285655 Hose Clamp - 1-5/8 Inch   (Replaces: 200461) 00 In-Stock Immediately $ 7.55

003 WP616099 Clamp, Spray Arm Hose   (Replaces: 200900) 00 In-Stock Immediately $ 7.03

004 202203 Pump As Pak 00 Appelez-nous -
005 NLA Pump Bearing Kit 00 Appelez-nous -
006 WP3367052 Clamp, Hose   (Replaces: 202574) 00 Special Order $ 7.49

007 NLA Pump Pulley With Pin 00 Appelez-nous -
008 204224 Impeller & Seal Assembly 00 Appelez-nous -
009 211068 Wicking-top 00 Appelez-nous -
010 NLA Oil Slinger-bottom 00 Appelez-nous -
011 211072 Oil & Water Slinger-top 00 Appelez-nous -
012 211200 Washer 00 Appelez-nous -
013 NLA Pump Housing, Poly 00 Appelez-nous -
014 NLA Screw, No.8 X 3/4 Inch 00 Appelez-nous -
015 212384 Gasket For Poly Pump 00 Appelez-nous -
016 212684 Rollpin For Pump Pulley 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

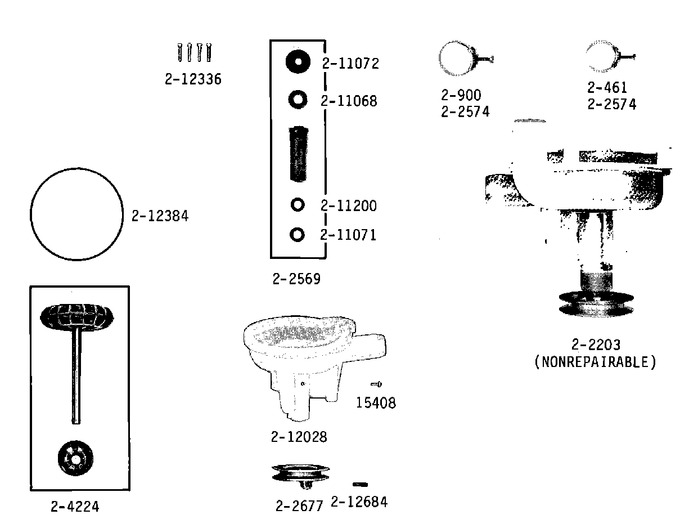

Diagram for A17CA
