Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 NLA Screw (no.6-32 X 3/8) 00 Appelez-nous -
002 NLA Top Cover-white 00 Appelez-nous -
003 203971 Pressure Switch 00 Appelez-nous -
004 204051 Knob 00 In-Stock Immediately $ 164.03

005 NLA Control Cover-white 00 Appelez-nous -
006 204109 3 Bulb Signal Light 00 Appelez-nous -
007 204510 Fabric Control Switch 00 Appelez-nous -
008 NLA Control Panel With Lens 00 Appelez-nous -
009 NLA Main Wire Harness 00 Appelez-nous -
010 NLA Main Wire Harness 00 Appelez-nous -
011 NLA Main Wire Harness 01 Appelez-nous -
012 204968 Plunger & Bracket Assembly--w 00 Special Order $ 26.05

013 W10820036 Switch, Lid (w/o Tub Light)   (Replaces: 205415) 00 In-Stock Immediately $ 27.45

014 210198 Fastener 00 Appelez-nous -
015 210866 Twin Speed Nut 00 Appelez-nous -
016 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

017 211500 Washer,bracke To Top Cover 00 Appelez-nous -
018 WP248562 Wire Connector   (Replaces: 211737) 00 Special Order $ 6.95

019 WP90767 Screw   (Replaces: 212276) 00 In-Stock Immediately $ 7.04

020 WP488234 Screw, No.8-32 X 1/4 Inch   (Replaces: 212519) 00 Special Order $ 6.07

021 212937 Moisture Barrier 00 Appelez-nous -
022 213042 Back Panel 00 Appelez-nous -
023 213099 Lens For Control Panel 00 Appelez-nous -
024 213501 Screw, No.6-20 X 1-1/8 Inch 00 Special Order $ 12.03

025 NLA Lid Bumper 00 Appelez-nous -
026 213718 Lid Switch Plunger 00 Special Order $ 12.10

027 213719 Unbalance Lever 00 Appelez-nous -
028 WP213720 Spring   (Replaces: 213720) 00 Special Order $ 7.63

029 WP355214 Screw, No.8-18 X 5/16 Inch   (Replaces: 213949) 00 In-Stock Immediately $ 7.26

030 214135 Fastener Clip 00 Appelez-nous -
031 214650 Screw For 2-4051 Knob 00 Special Order $ 62.55

032 Y310632 Screw 00 Appelez-nous -
033 W10756178 Screw   (Replaces: 910182) 00 Special Order $ 5.39


    View Diagram in Separate Window     Print Icon   Print Part List

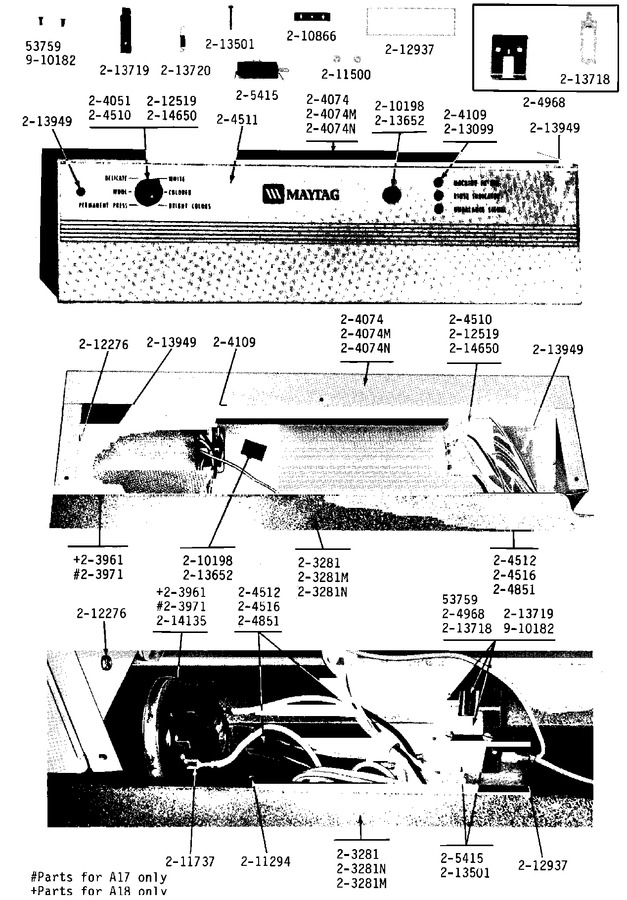

Diagram for A17CA
