02 - Control Panel


03 - Door


04 - Tub


05 - Motor, Heater And Spray Arm


06 - Frame


07 - Rack


08 - Detergent Cup

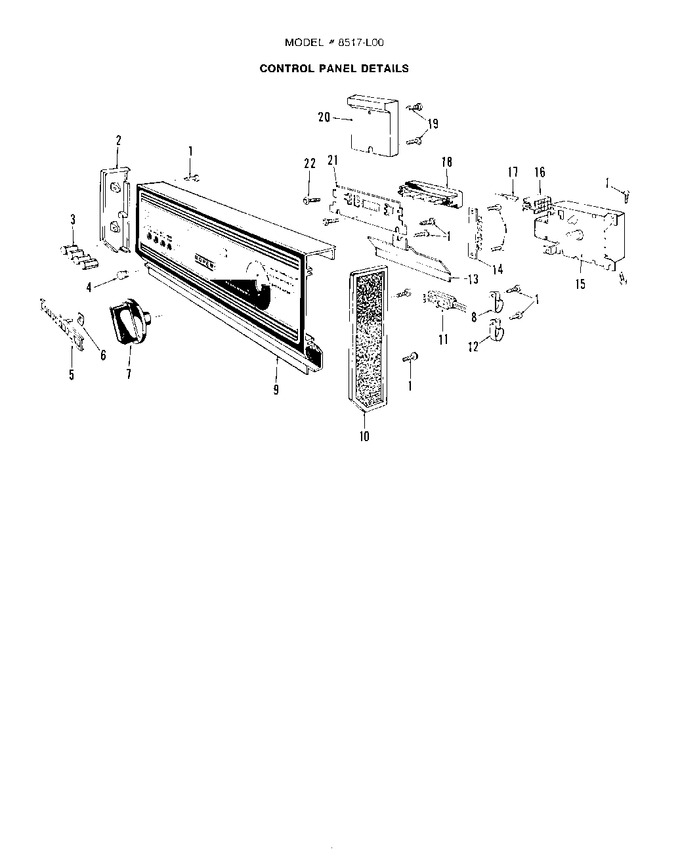

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809175		Screw No. 8b X 7/16`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
2	808694		End Cap-l.h. (black)		Appelez-nous	-
3	809369		Pushbuttons		Appelez-nous	-
4	809036		Lens		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	808475		Speednut		Appelez-nous	-
7	809370		Timer Knob		Appelez-nous	-
8	W10833902		Clamp   (Replaces: 805584)				$ 9.89
9	809380		Control Panel		Appelez-nous	-
10	808693		End Cap-r.h. (black)		Appelez-nous	-
11	809317		Light Assembly		Appelez-nous	-
12	808442		Clamp		Appelez-nous	-
13	808574		Shield - Vent Slot		Appelez-nous	-
14	808483		Terminal Board Assembly		Appelez-nous	-
15	809191		Timer		Appelez-nous	-
16	809296		Timer Terminal Housing		Appelez-nous	-
17	808333		Housing Terminal		Appelez-nous	-
18	809328		Switch		Appelez-nous	-
19	806894		Screw No.8x5/16``lg.c.r. Truss Hd. St. St.		Appelez-nous	-
20	807425		Splash Pan		Appelez-nous	-
21	806594		Switch Mounting Bracket		Appelez-nous	-
22	807141		Screw No. 6-30 X 3/8 Lg. Pan Hd. Cad. Pl.		Appelez-nous	-
