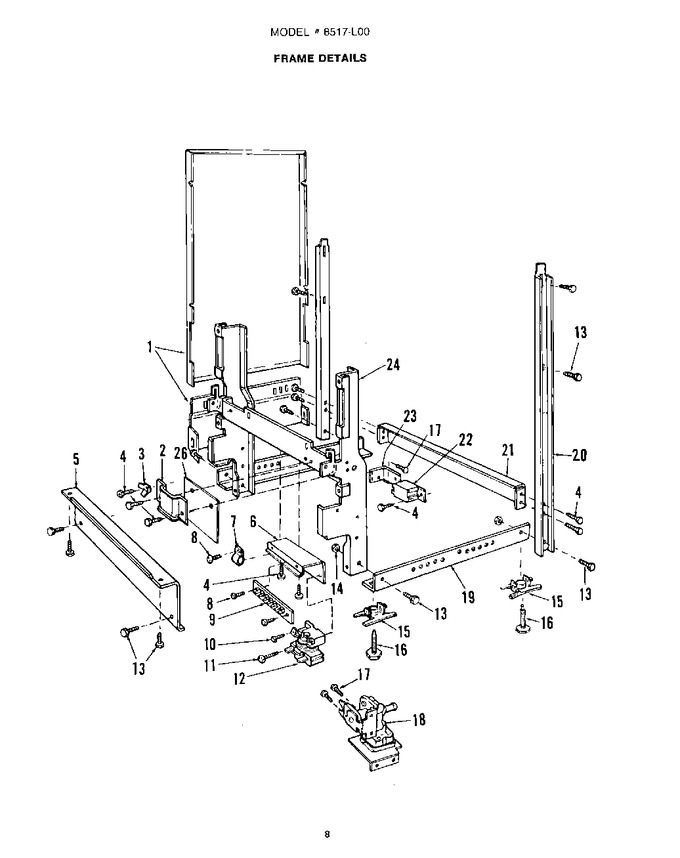

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808886		Side Panel Kit (reversible Right Or Left) (avocado)		Appelez-nous	-
1	808888		Side Panel Kit (reversible Right Or Left) (wheat)		Appelez-nous	-
1	808889		Side Panel Kit (reversible Right Or Left) (almond)		Appelez-nous	-
1	808885		Side Panel Kit (reversible Right Or Left) (coffee)		Appelez-nous	-
2	806723		Clamp - Wiring		Appelez-nous	-
3	807213		Grounding Terminal		Appelez-nous	-
4	WP90767		Screw No. 8 X 3/8`` Lg. C.r. Hex Washer Hd. Black   (Replaces: 808658)			Immediately	$ 7.04
5	807559		Toeplate		Appelez-nous	-
6	807849		Terminal Board Bracket		Appelez-nous	-
7	808442		Clamp		Appelez-nous	-
8	807501		Screw No.8x1/2`` Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
9	COMM PART		Terminal Block Assembly   (Replaces: 807486)		Appelez-nous	-
10	WP488234		Screw No. 8-32 X 3/4`` Lg. C.r. Pan Hd. Cad. Pl.   (Replaces: 806593)				$ 6.07
11	804672		Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl.		Appelez-nous	-
12	805255		Motor Relay		Appelez-nous	-
13	807001		Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd. Black		Appelez-nous	-
14	M0282005		Nut   (Replaces: 804619)				$ 7.07
15	807671		Teenut - Snap- In		Appelez-nous	-
16	807672		Leveler		Appelez-nous	-
17	807950		Screw No. 10b X 1/2`` Lg. Hex Slot Hd. Cad.		Appelez-nous	-
18	809241		Water Inlet Valve		Appelez-nous	-
19	807564		Angle Base		Appelez-nous	-
20	808670		Support Channel		Appelez-nous	-
21	807566		Rear Brace		Appelez-nous	-
22	800222		Junction Box Cover		Appelez-nous	-
23	807019		Junction Box Bracket		Appelez-nous	-
24	809212		Hinge Weld Assembly/8`` Lg. C.r. Round Hd. St. St.		Appelez-nous	-
