View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Console Panel
02 - Door
03 - Tub
04 - Motor, Heater, And Spray Arm
05 - Rack
06 - Frame
07 - Detergent Cup
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

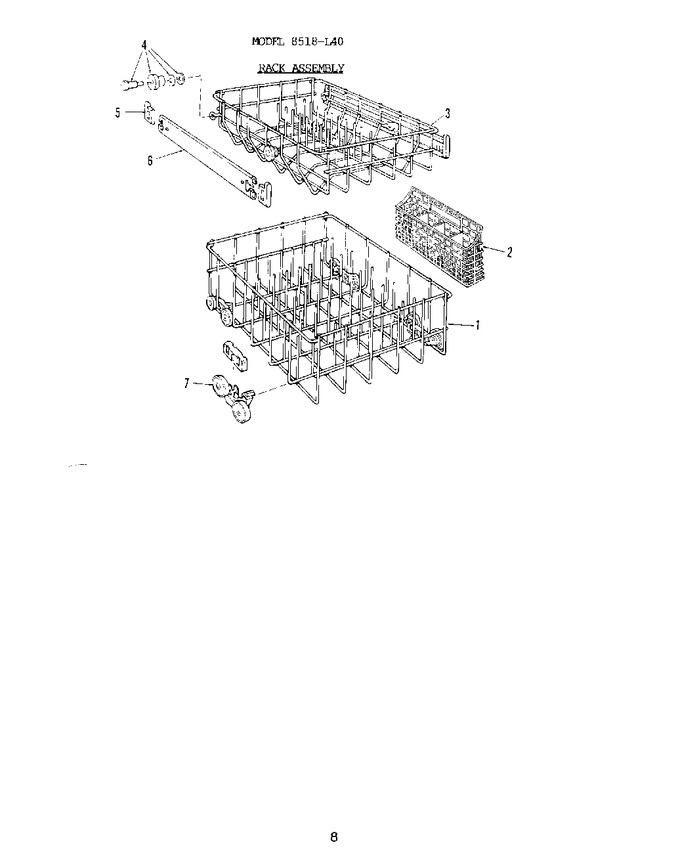

| 1 | 807683 | Rack Assembly-lower |
|
- | |||||
| 2 | 807512 | Silverware Basket |
|
- | |||||
| 3 | 807684 | Rack Assembly-upper |
|
- | |||||
| 4 | COMM PART | Wheel Assembly-complete (Replaces: 807245) |
|
- | |||||
| 5 | 807234 | Rack Slide - End Cap |
|
- | |||||
| 6 | 807568 | Rack Slide |
|
- | |||||
| 7 | 807008 | Cap-wheel Bracket (4) |
|
- |
