Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door Parts
03 - Door Parts

Diagram for 04 - Drawer Parts
04 - Drawer Parts

Diagram for 05 - Gas Control
05 - Gas Control

Diagram for 06 - Body Parts
06 - Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303271090 Trim-top Appelez-nous -
2 5303280365 Timer - E.o.c. Appelez-nous -
3 5303280262 Switch-light Appelez-nous -
4 5303289373 Glass-control Pnl Appelez-nous -
5 5303280374 Trim C/p Glass Appelez-nous -
6 5303271089 Trim-center Vent Appelez-nous -
7 3203026 Button-timer-white (8) Appelez-nous -
8 3202625 Knob-timer White Appelez-nous -
9 5303271088 Trim Cap Lh Appelez-nous -
10 5303271087 Trim Cap Rh Appelez-nous -
11 316003601 Plate Inst. Mtg. Appelez-nous -
12 5303210685 Wrapper - Housing Appelez-nous -
13 5303271091 Deflector-flue Appelez-nous -
*75800 5303270347 Bezel Light Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

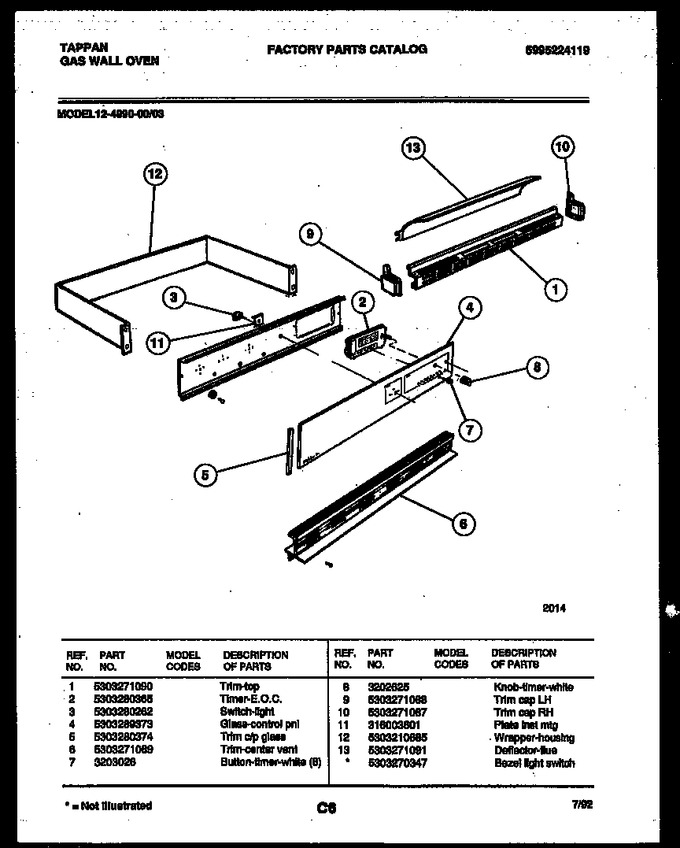

Diagram for 12-4990-00-03
