Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303210183 Valve Shut Off Appelez-nous -
2 3203700 Control Regulator Appelez-nous -
3 5303210796 Tubing Safety Valve Appelez-nous -
4 5303271092 Tubing Bake-broil Appelez-nous -
5 5303210798 Valve Safety Dual In-Stock Immediately $ 587.56

6 5303210785 Elbow Fitting Appelez-nous -
7 5303210788 Ignitor - Bake Burner Appelez-nous -
8 5303210787 Burner - Bake Appelez-nous -
9 5303210699 Baffle - Oven Burner Appelez-nous -
10 08007979 Nut Wing 10-24 Appelez-nous -
11 5303210807 Pin Broiler Mixer Appelez-nous -
12 5303210786 Elbow - Mixer Appelez-nous -
13 5303935068 Ignitor - Broil Burner   (Replaces: 5308067970) Special Order $ 166.55

14 5303283132 Burner,broiler Appelez-nous -
15 5303210792 Baffle - W/a - Broiler Appelez-nous -
16 5303210850 Shield - Broil Burner Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

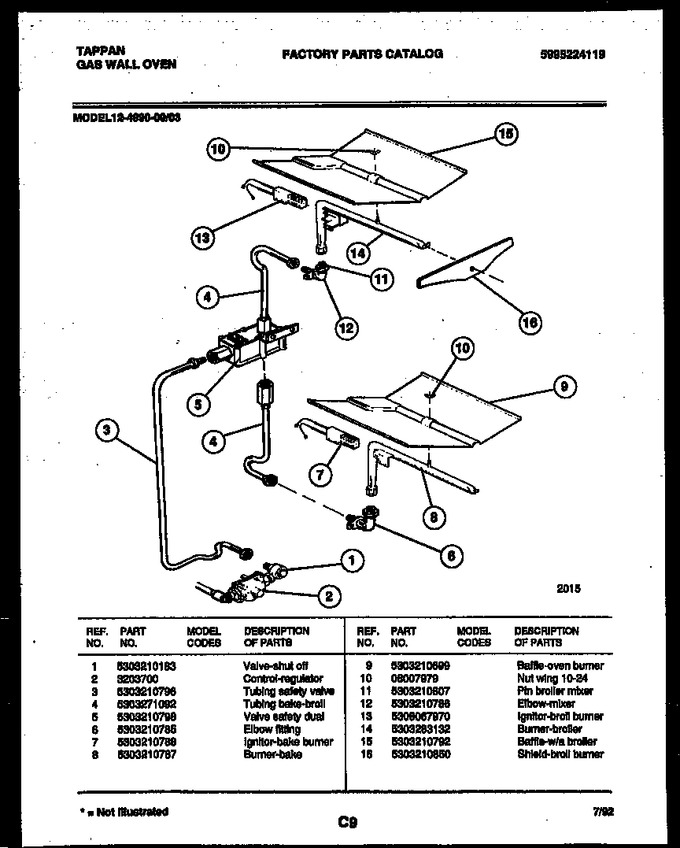

Diagram for 12-4990-00-03
