SELECT A DIAGRAM

02 - Console Panel


03 - Door


04 - Tub

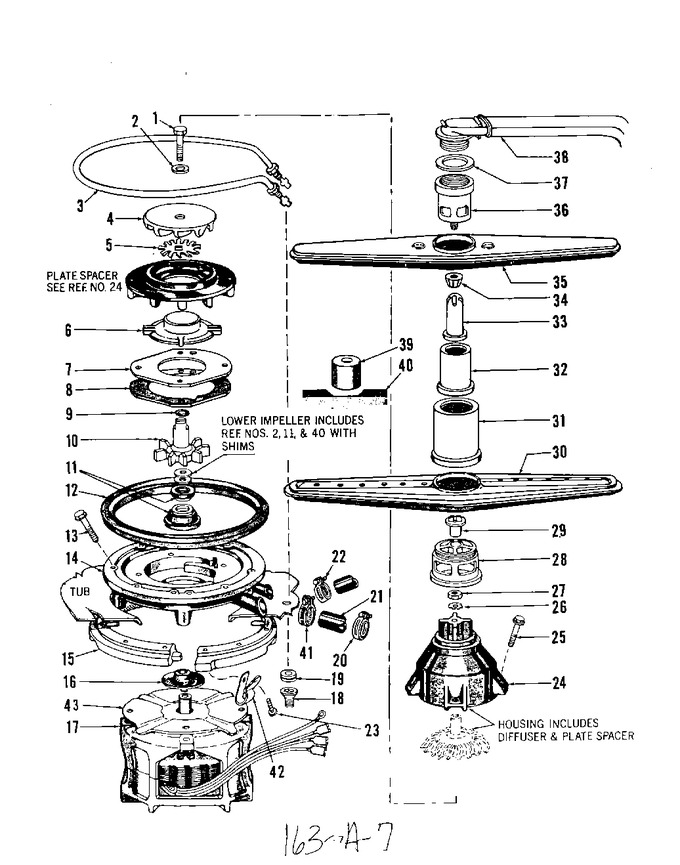

05 - Motor, Heater And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup


09 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	806836		Heater		Appelez-nous	-
4	808041		Impeller - Upper		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	807884		Plate - Pump		Appelez-nous	-
8	5300807709		Gasket - Pump   (Replaces: 807709)				$ 54.26
9	806521		``o`` Ring		Appelez-nous	-
10	5300808042		Impeller-lower Kit (includes Ref. No. 11, Seal; Ref. No.40, Gage - Seal Shim;-ref. No.9, ``o`` Ring A   (Replaces: 808042)		Appelez-nous	-
11	803903		Seal		Appelez-nous	-
12	807710		Gasket-pump		Appelez-nous	-
13	807268		Screw No.10-type 30xl`` Lg. Hex Washer Hd. St. St.		Appelez-nous	-
14	807711		Pump Housing		Appelez-nous	-
15	807712		Clamp Ring (includes Both Halves)		Appelez-nous	-
16	808561		Slinger		Appelez-nous	-
17	806300		Motor (includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4``lg. Impeller Bolts, Motor Sha		Appelez-nous	-
18	154106202		Nut 1/2`` 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
19	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
20	805495		Clamp - Hose		Appelez-nous	-
21	808174		Hose - Connector		Appelez-nous	-
22	806090		Clamp		Appelez-nous	-
23	807270		Screw 5/8``lg. C.r. Truss Hd Cad. Pl.		Appelez-nous	-
24	806978		Housing Pump (includes Diffuser & Plate Spacer)		Appelez-nous	-
25	807359		Screw No.10xl 3/4 Lg. Hex Hd. St. St.		Appelez-nous	-
26	COMM PART		Lockwasher   (Replaces: 804526)		Appelez-nous	-
27	316205500		Nut   (Replaces: 804527)				$ 11.34
28	808175		Bearing		Appelez-nous	-
29	808176		Nut		Appelez-nous	-
30	808177		Spray Arm Assembly		Appelez-nous	-
31	808178		Tower Base		Appelez-nous	-
32	808179		Tower Section		Appelez-nous	-
33	808180		Tower Tip		Appelez-nous	-
34	808181		Nut		Appelez-nous	-
35	808259		Spray Arm - Upper		Appelez-nous	-
36	808183		Distributor		Appelez-nous	-
37	808184		Gasket		Appelez-nous	-
38	808185		Elbow & Tube Assembly		Appelez-nous	-
39	803923		Seal Installation Tool		Appelez-nous	-
40	807077		Gage - Seal Shim		Appelez-nous	-
41	WP285655		Hose Clamp-recirculating   (Replaces: 808186)			Immediately	$ 7.55
42	808442		Clamp		Appelez-nous	-
43	808435		Motor Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
