SELECT A DIAGRAM
02 - Console Panel
03 - Door
04 - Tub
05 - Motor, Heater And Spray Arm
06 - Rack
07 - Frame
08 - Detergent Cup
09 - Top
SELECT A DIAGRAM
New Model Search:

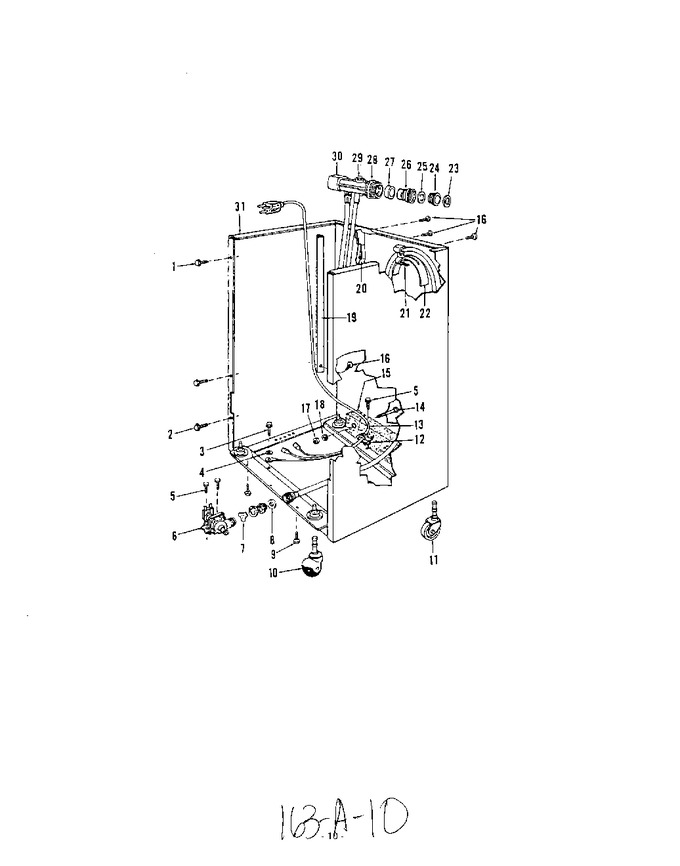

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806539 | Screw No.10-24x7/8``lg. Acorn Hex Hd. Chrome Pl. |
|
- | |||||
| 2 | 806663 | Screw No.10-24x5/8``lg. Acorn Hex Hd. Cad. Pl. |
|
- | |||||
| 3 | 807951 | Screw No.10-32x1/2``lg. Hex Washer Hd. Cad. Pl. |
|
- | |||||
| 4 | 807373 | Washer |
|
- | |||||
| 5 | 807950 | Screw 10bx1/2``lg. Hex Slotted Hd. Cad. Pl. |
|
- | |||||
| 6 | 808431 | Inlet Water Valve |
|
- | |||||
| 7 | 808432 | Flow Washer |
|
- | |||||
| 8 | 800787 | Washer - Hose |
|
- | |||||
| 9 | WP90767 | Screw 8ax3/8``lg. C.r. Hex Washer Hd. Cad. Pl. (Replaces: 808658) |
|
Immediately | $ 7.04 | ||||
| 10 | 808542 | Front Casters |
|
- | |||||
| 11 | 808543 | Rear Caster |
|
- | |||||
| 12 | 804426 | Clamp - Cord |
|
- | |||||
| 13 | 805046 | Power Cord |
|
- | |||||
| 14 | 806812 | Machine Screw 1/4``-20x4``lg. C.r. Truss Hd. Cad. Pl. |
|
- | |||||
| 15 | 808615 | Weight |
|
- | |||||
| 16 | 807501 | Screw No.8ax1/2`` Lg. C.r. Truss Hd. Chrome Pl. |
|
- | |||||
| 17 | 808661 | Nut |
|
- | |||||
| 18 | 808613 | Washer |
|
- | |||||
| 19 | COMM PART | Hose Guard (Replaces: 808120) |
|
- | |||||
| 20 | 805859 | Hose Guide |
|
- | |||||
| 21 | 806142 | Hose Clamp |
|
- | |||||
| 22 | 806143 | Hose Support |
|
- | |||||
| 23 | 803393 | Washer |
|
- | |||||
| 24 | 800782 | Screw Adaptor |
|
- | |||||
| 25 | 803392 | Washer |
|
- | |||||
| 26 | WPW10254672 | Adaptor - Aerator (Replaces: 803149) |
|
Immediately | $ 49.54 | ||||
| 27 | WP910218 | Rubber Sleeve Seal (Replaces: 806584) |
|
Immediately | $ 9.05 | ||||
| 28 | WP285170 | Collar Repair Kit (Replaces: 807499) |
|
Immediately | $ 64.29 | ||||
| 29 | 807498 | Pressure Relief Valve Kit |
|
- | |||||
| 30 | DWD8C | Hose & Coupler Assembly (Replaces: 807496) |
|
- | |||||
| 31 | 808537 | Wrapper Assy (almond) |
|
- | |||||
| 31 | 808533 | Wrapper Assy (white) |
|
- | |||||
| 31 | 808534 | Wrapper Assy (coffee) |
|
- | |||||
| 31 | 808535 | Wrapper Assy (avocado) |
|
- | |||||
| 31 | 808536 | Wrapper Assy (golden Wheat) |
|
- |
