SELECT A DIAGRAM

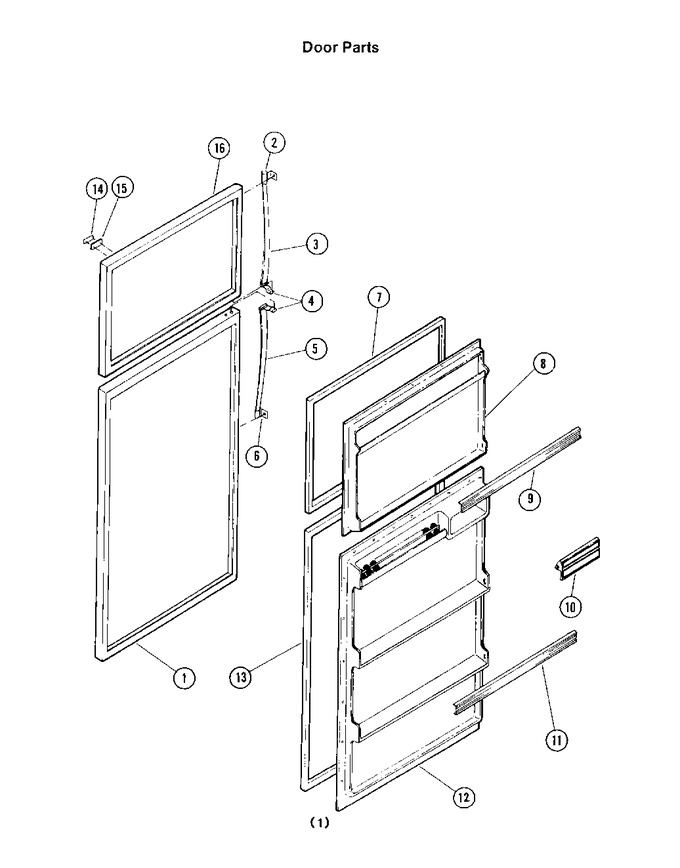

01 - Cover


02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost


05 - Ice Maker


06 - Im Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790164		Exterior Panel - Refrigerator - Avocado		Appelez-nous	-
1	790165		Exterior Panel - Refrigerator - Harvest		Appelez-nous	-
1	790166		Exterior Panel - Refrigerator - Coffee		Appelez-nous	-
1	790167		Exterior Panel - Refrigerator - Almond		Appelez-nous	-
1	790000		Exterior Panel - Refrigerator - White		Appelez-nous	-
2	790002		End - Handle		Appelez-nous	-
3	790003		Grip - Handle Freezer		Appelez-nous	-
4	790002		End - Handle		Appelez-nous	-
5	790003		Grip - Handle - Refrigerator		Appelez-nous	-
6	790005		End - Handle Bottom Refrigerator		Appelez-nous	-
7	790006		Gasket - Freezer Door		Appelez-nous	-
8	790007		Interior Panel - Freezer		Appelez-nous	-
9	790009		Rack - Freezer Door		Appelez-nous	-
10	790010		Door - Butter		Appelez-nous	-
11	790011		Rack - Refrigerator		Appelez-nous	-
12	790012		Interior Panel - Refrigerator		Appelez-nous	-
13	790013		Xgasket - Refrigerator Door		Appelez-nous	-
14	790014		Label - Nameplate		Appelez-nous	-
15	790016		Nameplate		Appelez-nous	-
16	790169		Exterior Panel - Freezer - Harvest		Appelez-nous	-
16	790171		Exterior Panel - Freezer - Almond		Appelez-nous	-
16	790017		Exterior Panel - Freezer - White		Appelez-nous	-
16	790168		Exterior Panel - Freezer - Avocado		Appelez-nous	-
16	790170		Exterior Panel - Freezer - Coffee		Appelez-nous	-
	790172		Button-plug R.h. Handle Mounting Holes - Avocado		Appelez-nous	-
	790176		Button - Plug - L.h. Upper Hinge Bearing - Avocado		Appelez-nous	-
	790008		Screw - Panel To Door - Refrigerator		Appelez-nous	-
	790183		Kit - Door Conversion - Almond		Appelez-nous	-
	790182		Kit - Door Conversion - Coffee		Appelez-nous	-
	790181		Kit - Door Conversion - Harvest		Appelez-nous	-
	790180		Kit - Door Conversion - Avocado		Appelez-nous	-
	790020		Kit - Door Conversion - White		Appelez-nous	-
	790179		Button - Plug - L.h. Upper Hinge Bearing - Almond		Appelez-nous	-
	790178		Button - Plug - L.h. Upper Hinge Bearing - Coffee		Appelez-nous	-
	790177		Button - Plug - L.h. Upper Hinge Bearing - Harvest		Appelez-nous	-
	790019		Button - Plug - L.h. Upper Hinge Bearing - White		Appelez-nous	-
	790175		Button-plug R.h. Handle Mounting Holes - Almond		Appelez-nous	-
	790174		Button-plug R.h. Handle Mounting Holes - Coffee		Appelez-nous	-
	790173		Button-plug R.h. Handle Mounting Holes - Harvest		Appelez-nous	-
	790004		Screw - Handles		Appelez-nous	-
	790015		Tape - Frame To Door		Appelez-nous	-
	790018		Button-plug R.h. Handle Mounting Holes - White		Appelez-nous	-
	790001		Bearing - Hinge - Freezer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
