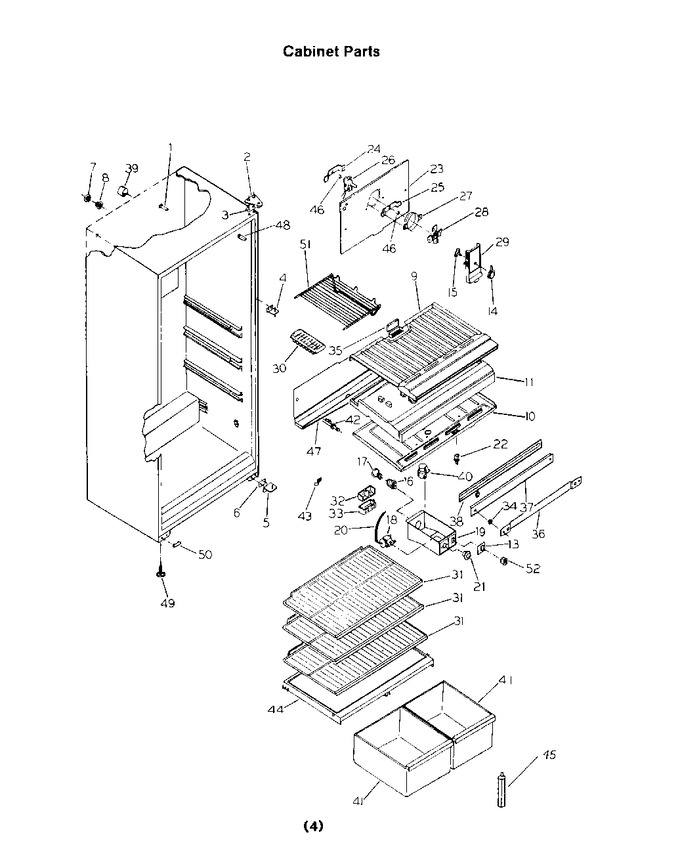

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost
05 - Ice Maker
06 - Im Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790021 | Support - Coil Cover |
|
- | |||||
| 2 | 790022 | Bracket - Hinge Top |
|
- | |||||
| 3 | 790028 | Shim - Upper Hinge |
|
- | |||||
| 4 | 790029 | Xbracket - Center Hinge |
|
- | |||||
| 5 | 790032 | Xbracket - Lower Hinge |
|
- | |||||
| 6 | 790036 | Shim - Lower Hinge |
|
- | |||||
| 7 | 790037 | Ferrule - Inner |
|
- | |||||
| 8 | 790038 | Ferrule - Outer |
|
- | |||||
| 9 | 790039 | Bottom - Freezer |
|
- | |||||
| 10 | 790040 | Top - Refrigerator |
|
- | |||||
| 11 | 790042 | Divider - Compartment |
|
- | |||||
| 12 | 4396923 | Tray - Ice (Replaces: 790043) |
|
Immediately | $ 52.04 | ||||
| 13 | 4396923 | Label - Control Box (Replaces: 790044) |
|
Immediately | $ 52.04 | ||||
| 14 | 790045 | Knob - Damper Control |
|
- | |||||
| 15 | 790046 | Damper - Fan Cover |
|
- | |||||
| 16 | 790048 | Xsocket - Light |
|
- | |||||
| 17 | 790049 | Bulb - Light |
|
- | |||||
| 18 | 790050 | Xcold Control |
|
- | |||||
| 19 | 790052 | Box - Control |
|
- | |||||
| 20 | 790054 | Tube - Plastic |
|
- | |||||
| 21 | WP7112P004-60 | Knob - Control (Replaces: 790055) |
|
Immediately | $ 11.07 | ||||
| 22 | 790056 | Xswitch - Light |
|
- | |||||
| 23 | 790057 | Cover - Coil |
|
- | |||||
| 24 | WP7212P006-60 | Bracket - Rear Motor Mounting (Replaces: 790059) |
|
$ 105.81 | |||||
| 25 | 790060 | Bracket - Front Motor Mounting |
|
- | |||||
| 26 | 790061 | Xmotor - Blower |
|
- | |||||
| 27 | 790062 | Ring - Fan Orifice |
|
- | |||||
| 28 | 40A15 | Xfan (Replaces: 790064) |
|
Immediately | $ 1.98 | ||||
| 29 | 790065 | Cover - Fan |
|
- | |||||
| 30 | 790066 | Switch - Slide |
|
- | |||||
| 31 | 790067 | Shelf - Sliding |
|
- | |||||
| 32 | 790068 | Deflector - Air |
|
- | |||||
| 33 | 790069 | Cover - Air Deflector |
|
- | |||||
| 34 | 790070 | Spacer - Mullion Mounting |
|
- | |||||
| 35 | 790072 | Pan - Foam |
|
- | |||||
| 36 | 790073 | Strap - Mullion Mounting |
|
- | |||||
| 37 | 790195 | Mullion - Almond |
|
- | |||||
| 37 | 790074 | Mullion - White |
|
- | |||||
| 37 | 790192 | Mullion - Avocado |
|
- | |||||
| 37 | 790193 | Mullion - Harvest |
|
- | |||||
| 37 | 790194 | Mullion - Coffee |
|
- | |||||
| 38 | 790075 | Heater - Mullion |
|
- | |||||
| 39 | 790076 | Xtube - In Ferrule |
|
- | |||||
| 40 | 790077 | Xtimer - Defrost |
|
- | |||||
| 41 | 790079 | Pan - Storage |
|
- | |||||
| 42 | 790080 | Xtube - Defrost Drain |
|
- | |||||
| 43 | 790081 | Clamp - Tube |
|
- | |||||
| 44 | 790083 | Cover - Crisper |
|
- | |||||
| 45 | 790084 | Bushing - Motor Mounting |
|
- | |||||
| 46 | 790085 | Trough - Drain |
|
- | |||||
| 47 | 790199 | Trim - Cabinet Corner - Almond |
|
- | |||||
| 47 | 790197 | Trim - Cabinet Corner - Harvest |
|
- | |||||
| 47 | 790196 | Trim - Cabinet Corner - Avocado |
|
- | |||||
| 47 | 790086 | Trim - Cabinet Corner - White |
|
- | |||||
| 47 | 790198 | Trim - Cabinet Corner - Coffee |
|
- | |||||
| 48 | 790087 | Button Plug - L.h. Hinge Hole |
|
- | |||||
| 49 | 790088 | Screw - Leveling |
|
- | |||||
| 790184 | Cover - Top Hinge - Avocado |
|
- | ||||||
| 790053 | Screw No.8 X 5/8 |
|
- | ||||||
| 790185 | Cover - Top Hinge - Harvest |
|
- | ||||||
| 12400035 | Cover - Top Hinge - White (Replaces: 790023) |
|
Immediately | $ 60.44 | |||||
| 790091 | Plug - Ice Maker Harness Hole |
|
- | ||||||
| 790090 | Plug - Water Tube Hole |
|
- | ||||||
| 790089 | Nut - Anchor - Leveling Screw |
|
- | ||||||
| 790082 | Screw - Clamp - Defrost Drain Tube |
|
- | ||||||
| 790078 | Screw No.6-20 X 1/4 Defrost Timer |
|
- | ||||||
| 790071 | Washer - Spacer - Mullion Mounting |
|
- | ||||||
| 790063 | Nut No.8 U Type - Fan Orifice Ring |
|
- | ||||||
| 790058 | Screw No.8 X 1/2 - Coil Cover |
|
- | ||||||
| 790098 | Butter Dish |
|
- | ||||||
| 790051 | Screw No.6-32 X 1/4 - Cold Control |
|
- | ||||||
| 790047 | Nut - Damper Mounting |
|
- | ||||||
| 790041 | Screw No.8 X 1-3/4 - Refrigerator Top |
|
- | ||||||
| 790035 | Screw - Lower Hinge To Base |
|
- | ||||||
| 790034 | Pin - Lower Hinge |
|
- | ||||||
| 790033 | Plate - Tapping - Lower Hinge |
|
- | ||||||
| 790031 | Screw - Center Hinge & Mullion |
|
- | ||||||
| 790030 | Pin - Center Hinge |
|
- | ||||||
| 790027 | Washer - Hinge & Door |
|
- | ||||||
| 790026 | Washer - Hinge & Door |
|
- | ||||||
| 790097 | Sheet - Service Data |
|
- | ||||||
| 790191 | Plug - Hinge Holes - Almond |
|
- | ||||||
| 790190 | Plug - Hinge Holes - Coffee |
|
- | ||||||
| 790189 | Plug - Hinge Holes - Harvest |
|
- | ||||||
| 790188 | Plug - Hinge Holes - Avocado |
|
- | ||||||
| 790025 | Plug - Hinge Holes - White |
|
- | ||||||
| 790024 | Screw - Bracket - Top Hinge |
|
- | ||||||
| 790187 | Cover - Top Hinge - Almond |
|
- | ||||||
| 790096 | Operating Instructions |
|
- | ||||||
| 790095 | Wiring Harness |
|
- | ||||||
| 790094 | Button - Plug Liner Holes |
|
- | ||||||
| 790093 | Button - Decorative Plug |
|
- | ||||||
| 790092 | Plug - Ice Maker Holes |
|
- | ||||||
| 790186 | Cover - Top Hinge - Coffee |
|
- |
