01 - Cover
03 - Cabinet/drum

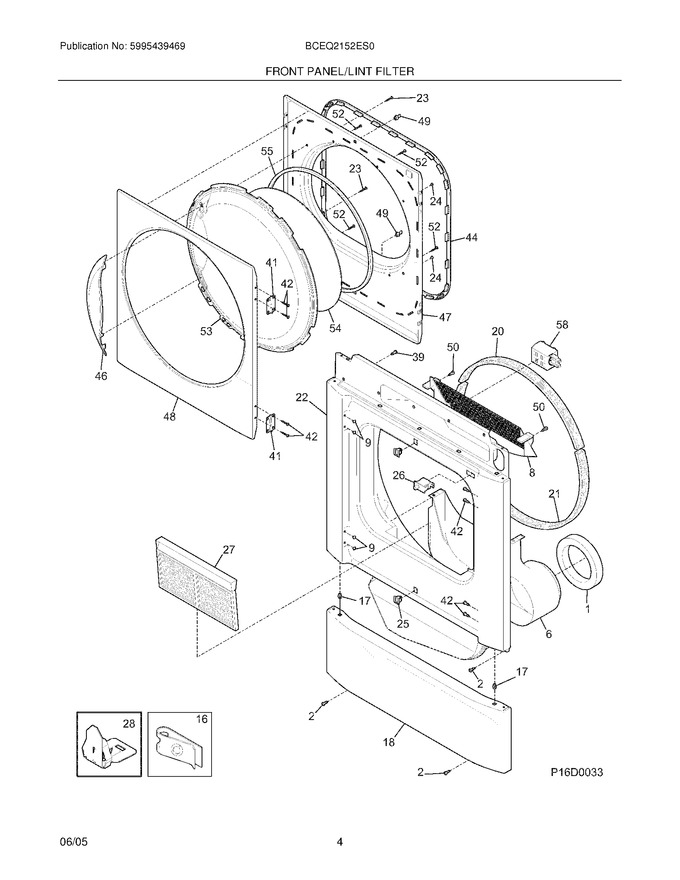

05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134417000 | Seal,air Duct |
|
Immediately | $ 9.22 | ||||
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 6 | 134382900 | Duct,air |
|
$ 183.12 | |||||
| 9 | 131633200 | Plug,white |
|
$ 15.90 | |||||
| 16 | 134440100 | Clip,u-nut |
|
$ 7.30 | |||||
| 17 | 134408700 | Clip,assembly |
|
$ 8.35 | |||||
| 18 | 134321702 | Panel,front Service ,white |
|
$ 139.33 | |||||
| 20 | 134440200 | Seal,felt ,upper |
|
Immediately | $ 41.24 | ||||
| 21 | 5303937183 | Seal,felt ,lower (Replaces: 134134700) |
|
Immediately | $ 35.87 | ||||
| 22 | 134393502 | Panel,front ,white ,with Lamp Hole |
|
- | |||||
| 23 | 134430300 | Screw,indt Pan Head ,10-14 X 0.625 ,quadrex |
|
Immediately | $ 14.89 | ||||
| 24 | 134465100 | Plug,handle Hole |
|
$ 9.24 | |||||
| 25 | 131658800 | Door Catch |
|
Immediately | $ 68.38 | ||||
| 27 | 131450300 | Trap,lint Blade Assy |
|
Immediately | $ 30.47 | ||||
| 28 | 134440000 | Clip,guide ,(3) |
|
- | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 41 | 134412400 | Hinge,door |
|
$ 55.13 | |||||
| 42 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 44 | 134413300 | Gasket,door Seal |
|
$ 67.28 | |||||
| 46 | 134472203 | Handle,door |
|
- | |||||
| 47 | 134412304 | Panel,inner Door ,white |
|
$ 59.33 | |||||
| 48 | 134412103 | Panel,outer Door ,white |
|
- | |||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 131303300 | Screw,pan Head ,10-16ab X 0.500 ,locking |
|
- | |||||
| 52 | 131243700 | Screw,indt Pan Head ,8-18ab X 0.375 (Replaces: 134529600) |
|
$ 3.36 | |||||
| 53 | 134443203 | Adapter,door Glass Ring |
|
$ 210.11 | |||||
| 54 | 134413100 | Panel,door Glass |
|
- | |||||
| F26 | 134813601 | Switch,door ,with Drum Light (Replaces: 131843101) |
|
Immediately | $ 33.09 | ||||
| F55 | 134580300 | Gasket,door Glass Seal (Replaces: 134413200) |
|
$ 66.51 | |||||
| F58 | 131843500 | Lamp Assy,drum Light ,w/mtg Bracket |
|
$ 73.00 | |||||
| F8 | 131845802 | Cover,lint Housing ,w/moist Sensor |
|
$ 175.40 | |||||
| NI | 131843500 | Lamp (Replaces: 131862800) |
|
$ 73.00 | |||||
| NI | 134560500 | Spacer,door |
|
- | |||||
| NI | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 |
