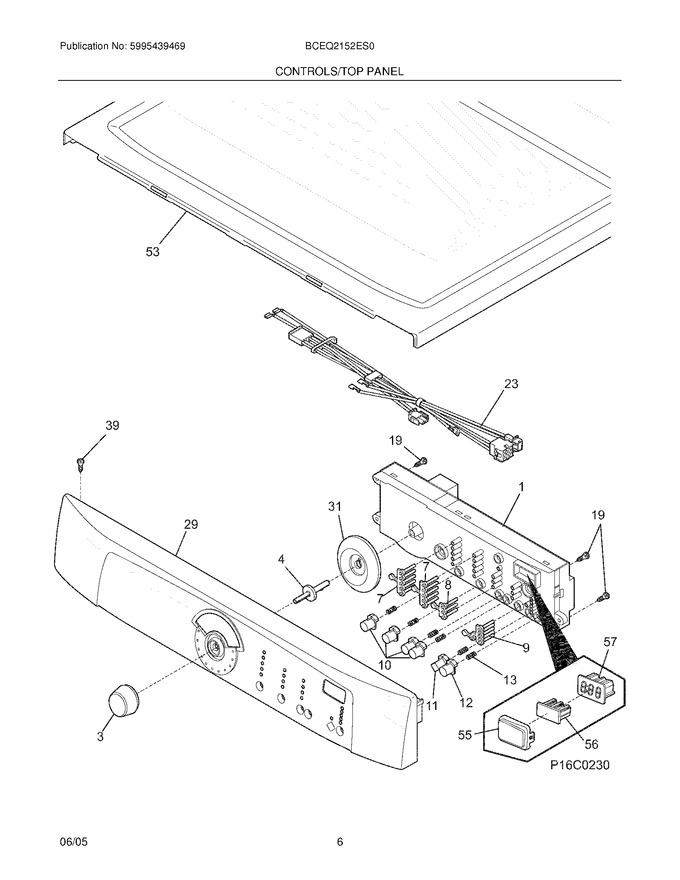

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	134471500		Knob,program				$ 58.38
4	134347700		Pin,program Knob				$ 19.74
7	134429100		Light Pipe,array ,1 Row Of 5				$ 130.57
8	134429200		Light Pipe,array ,2 Row Of 4				$ 12.97
9	134429400		Light Pipe,array ,4 Start Group				$ 13.39
10	134447100		Push Button,no.1				$ 14.18
11	134447202		Push Button,no.2				$ 10.71
12	134447302		Push Button,no.3				$ 27.51
13	134349400		Spring,push Button				$ 9.14
19	134402900		Screw,phillips Pan Hd ,6-19 X 0.650 ,type P				$ 29.77
29	134544100		Panel,control Console				$ 155.72
31	134441400		Bezel,knob Flange				$ 53.39
39	134178901		Screw,8-18ab X 0.455				$ 14.89
53	134365000		Panel,work Top ,white		Appelez-nous	-
55	134428900		Lens,digital Display				$ 60.59
56	134503400		Light Pipe,digital Display		Appelez-nous	-
F1	134523200NH		Control Board,printed Circuit ,with Housing   (Replaces: 134523200)				$ 233.51
F23	134394400		Wiring Harness,controls				$ 119.23
F57	134503300		Display,digital				$ 52.24
NI	134394200		Wiring Harness,main				$ 170.94
NI	134523000		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
