01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

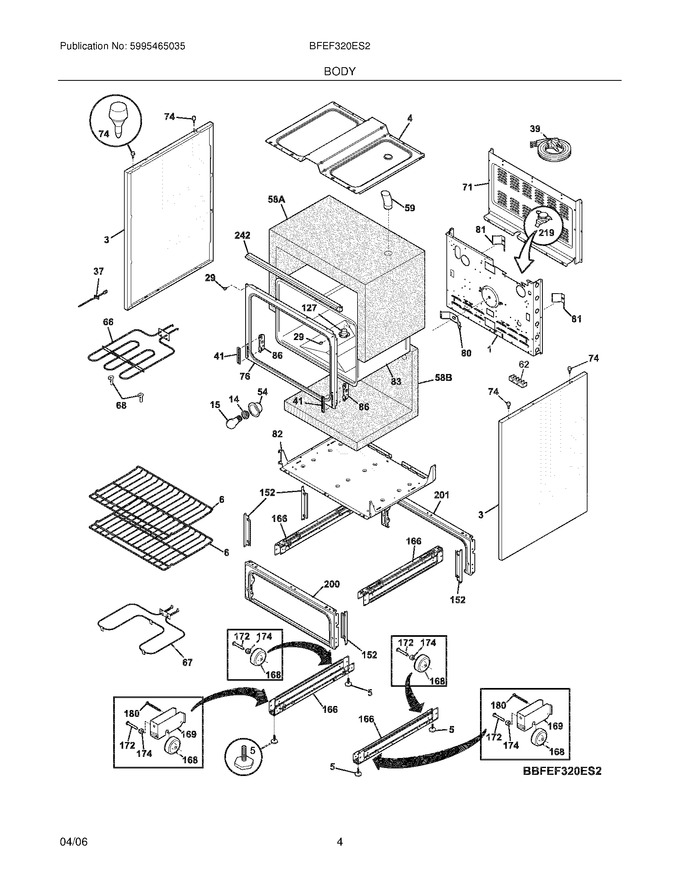

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259202		Back,main		Appelez-nous	-
3	318299801		Panel,body Side ,white ,(2)		Appelez-nous	-
4	318313101		Cover,insualtion				$ 96.81
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318262502		Rack,oven		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072573		Duct,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
71	318300900		Panel,cover				$ 41.95
74	318141910		Bumper,bodyside				$ 3.68
76	318056216		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
127	318317000		Adapter,vent Tube				$ 19.16
152	318338500		Bracket,lateral Panel ,(4)				$ 8.14
166	318298400		Bracket,base Support ,(4)				$ 59.48
168	08011155		Roller				$ 6.88
169	318317200		Bracket,wheel Brake				$ 12.23
172	5304448824		Rivet,1.4`` X 1-5/8`` ,(4)				$ 1.91
174	5303324511		Spacer, Roller		Appelez-nous	-
180	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
180	318147800		Screw,socket Head Cap ,lock		Appelez-nous	-
200	318318400		Frame,drawer ,black ,front ,w/rollers				$ 66.20
201	318311610		Frame,drawer ,rear				$ 50.70
242	318303101		Trim,center ,black		Appelez-nous	-
58A	318285074		Insulation,oven Wrapper				$ 58.31
58B	318285075		Insulation,oven Back				$ 56.54
F219	318003602		Thermostat,safety				$ 110.09
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F39	318113108		Cord,electric		Appelez-nous	-
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318232055		Harness,wiring ,main				$ 105.26
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
