SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

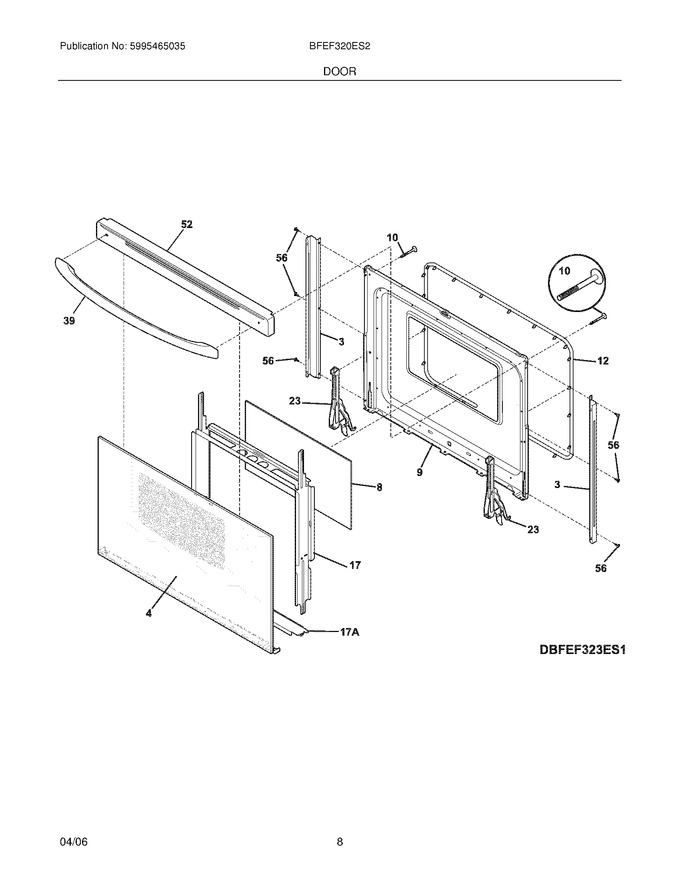

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318304100		Door Assembly,glass ,white ,w/trim				$ 137.29
8	316427700		Glass,oven Door ,inner				$ 178.09
9	318259625		Liner,oven Door				$ 227.96
10	5304453593		Screw,handle Mtg.				$ 10.53
12	318053325		Seal,door ,lower Oven				$ 64.94
17	318300503		Bracket,glass				$ 46.15
23	5303311259		Hinge,oven Door ,(2)		Appelez-nous	-
39	316270201		Handle,door ,white			Immediately	$ 128.29
52	318304200		Trim,door ,white ,upper		Appelez-nous	-
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
17A	318300601		Bracket,glass ,lower				$ 16.47
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
