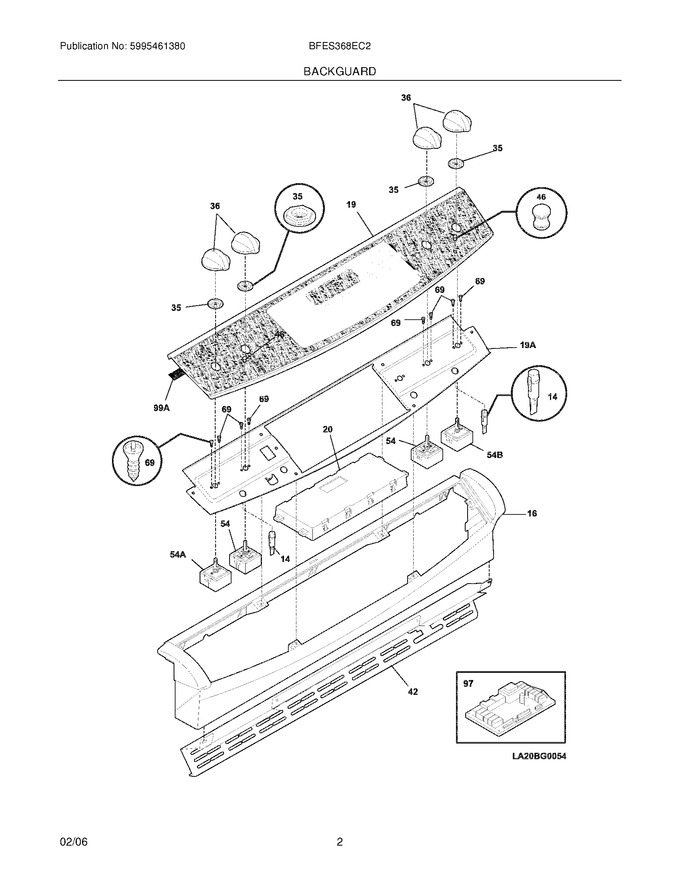

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318312208		Control Panel Assembly,w/membrane ,stainless				$ 407.98
35	318183100		Support,glass ,black				$ 9.35
36	316223027		Knob,control ,black				$ 32.45
42	318298001		Trim,vent ,black ,upper				$ 59.01
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
97	316418101		Board,cooktop Lockout				$ 258.83
19A	318224403		Panel,control Mtg.				$ 199.61
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293900		Light,indicator ,125v ,(2)		Appelez-nous	-
F20	316418531		Clock/timer,electronic ,es350				$ 234.46
F54	903136-9010		Switch,surface Unit ,single   (Replaces: 318220080)			Immediately	$ 107.42
F54A	903136-9020		Switch,surface Unit ,large   (Replaces: 318220081)			Immediately	$ 124.39
F54B	318191023		Switch,infinite ,dual			Immediately	$ 70.64
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92
NI	318228817		Harness,wiring ,main ,backguard		Appelez-nous	-
NI	318224822		Harness,wiring ,lock Out		Appelez-nous	-
NI	318224811		Harness,wiring ,timer		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
