Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318298800		Panel,drawer ,stainless ,front		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
16	318223649		Main Top,glass Assy. ,black/white				$ 466.57
39	316270200		Handle,door ,black				$ 136.40
46	318225410		Box,burner		Appelez-nous	-
52	318122011		Spring,element ,1700w/2700w				$ 62.14
91	5304530475		Trim,filler ,black ,rear   (Replaces: 318304303)			Immediately	$ 78.11
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)				$ 90.72
165	318227503		Plate,mounting				$ 247.59
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
52A	318122006		Spring,element Mtg ,small				$ 66.25
52C	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198926		Element,surface ,6/9 ,1700/2700w ,dual Radiant				$ 157.28
F15A	318198823		Element,surface ,9`` ,large ,2700 W				$ 235.73
F15B	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318228918		Harness,wiring ,cooktop		Appelez-nous	-
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17

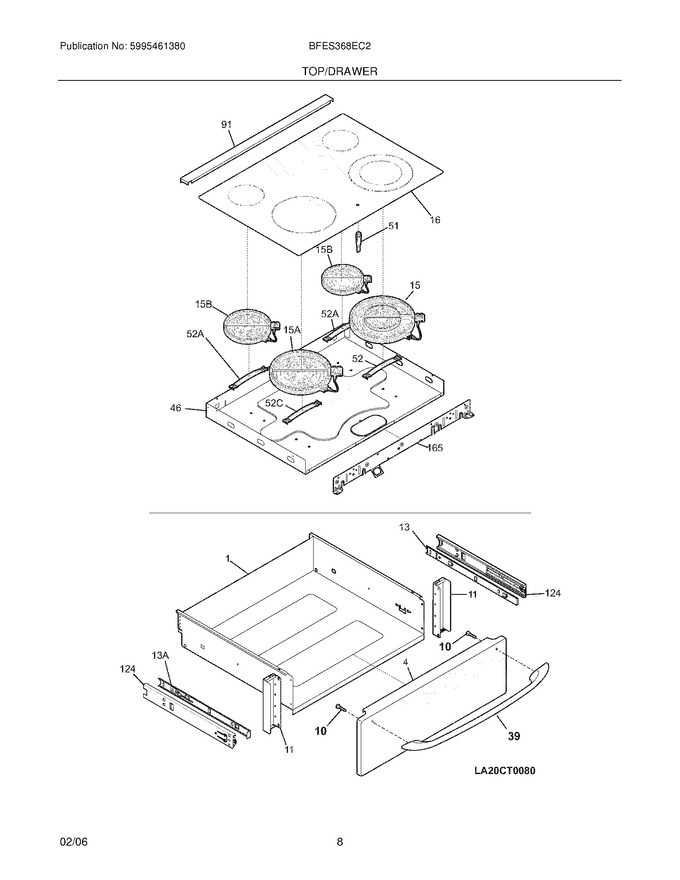

    View Diagram in Separate Window       Print Part List
