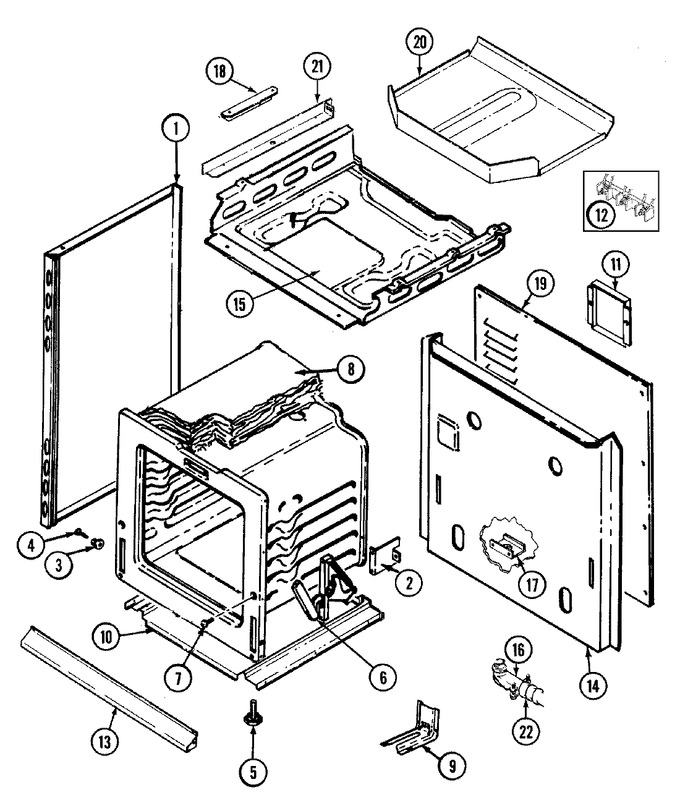

01 - Body
02 - Door/drawer
03 - Oven
04 - Top Assy.\control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F081-70 | Panel, Side | 01 |
|
- | ||||
| 1 | 2618F097-70 | Panel, Side (rt-blk) | 05 |
|
- | ||||
| 1 | 2618F080-70 | Panel, Side | 01 |
|
- | ||||
| 1 | 2618F098-70 | Side, Panel - Right (black) | 05 |
|
- | ||||
| 2 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 3 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 4 | W11772394 | Screw (Replaces: 7101P334-60) | 01 |
|
Immediately | $ 10.94 | |||
| 5 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 6 | 7106P032-60 | Hinge, Door | 01 |
|
- | ||||
| 7 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 8 | 4804F031-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 8 | 4804F032-60 | Insulation, Oven Wrapper | 01 |
|
- | ||||
| 9 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 9 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 10 | 4011F176-51 | Bottom, Main | 01 |
|
- | ||||
| 11 | 4005F413-51 | Cover, Access | 01 |
|
- | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 13 | 3604W155-70 | Shield, Lower Vent (blk) | 01 |
|
- | ||||
| 13 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 14 | 4002F192-80 | Back, Main | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 15 | 4011F224-80 | Box, Burner | 01 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 16 | 8008P017-60 | Grommet | 01 |
|
- | ||||
| 17 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 18 | 3801F256-51 | Bracket, Panel | 01 |
|
- | ||||
| 19 | 4006F133-51 | Box, Wire Cover | 01 |
|
- | ||||
| 19 | 4005F411-51 | Cover, Wire | 01 |
|
- | ||||
| 20 | 3604F199-51 | Shield, Wire | 01 |
|
- | ||||
| 21 | 3604F174-51 | Shield, Heat (rt) | 01 |
|
- | ||||
| 21 | 3604F173-51 | Shield, Heat (lt) | 01 |
|
- | ||||
| 22 | 5140A026-60 | Wires Conduit | 01 |
|
- | ||||
| 22 | 3414F066-51 | Tubing, Conduit | 01 |
|
- |
