SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Oven
04 - Top Assy.\control Panel
New Model Search:

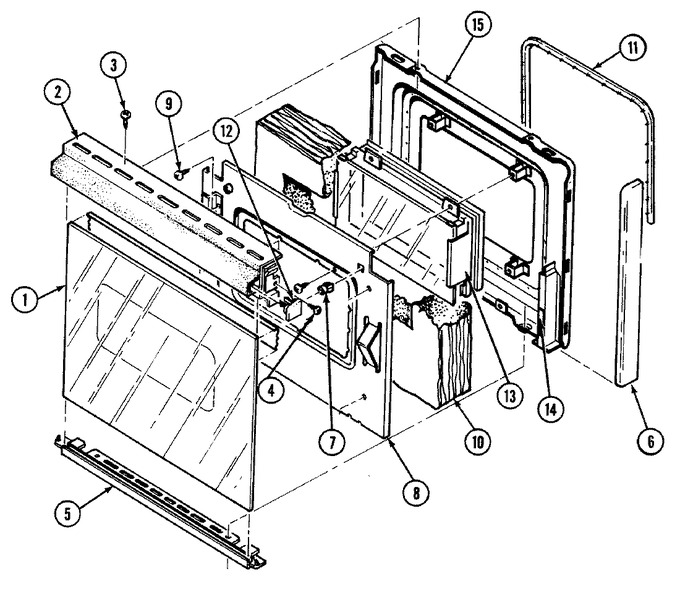

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P321-60 | Glass, Door (blk) | 01 |
|
- | ||||
| 2 | 7701P103-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 3 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 4 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 5 | 7744P105-60 | Trim, Bottom (blk)----na | 01 |
|
- | ||||
| 6 | 7744P055-60 | End Cap, Oven Door (blk) | 01 |
|
- | ||||
| 7 | 8010P075-60 | Spacer | 01 |
|
- | ||||
| 8 | 3601F219-45 | Baffle, Door | 01 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 10 | 4804F035-60 | Insulation | 01 |
|
- | ||||
| 11 | WP7212P043-60 | Seal, Door (Replaces: 7212P042-60) | 01 |
|
Immediately | $ 56.83 | |||
| 12 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 12 | 7744P076-60 | End Cap (lt) | 01 |
|
- | ||||
| 13 | 7907P016-60 | Window Asy. | 01 |
|
- | ||||
| 14 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 15 | 2402W204-19 | Lining, Door | 01 |
|
- | ||||
| 15 | 8010P085-60 | Spacer, Rubber | 01 |
|
- |
