SELECT A DIAGRAM

01 - Body

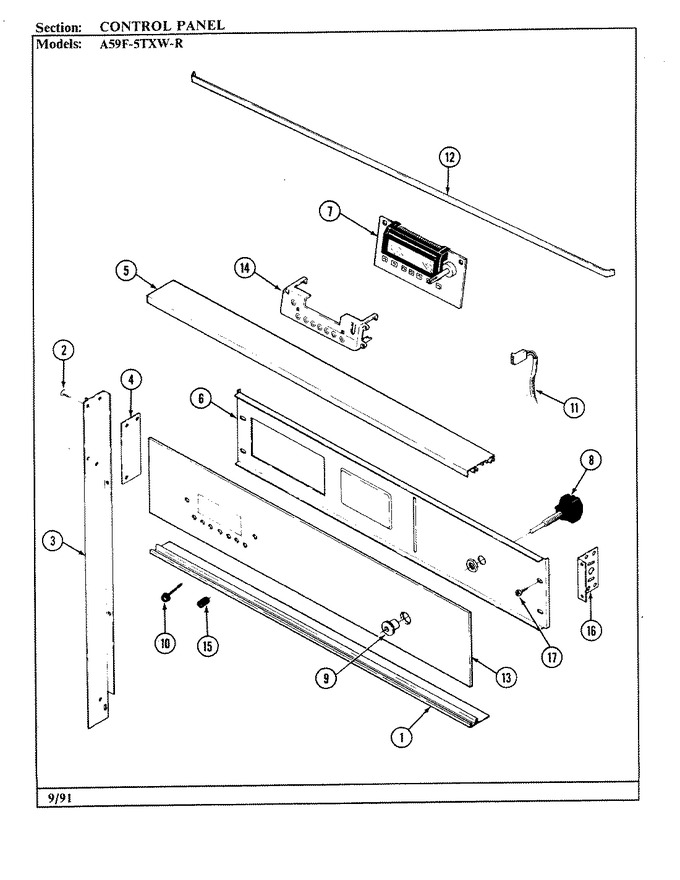

02 - Control Panel (a59f-5tvw-r)


03 - Door


04 - Internal Controls


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7756P043-60		Trim, Control (btm)	1	Appelez-nous	-
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
3	7706P145-60		Trim,side (left)	1	Appelez-nous	-
3	7706P144-60		Trim, Side (right)	1	Appelez-nous	-
4	7726P023-60		Trim, End Cap	1	Appelez-nous	-
5	7752P002-60		Trim, Control Top	1	Appelez-nous	-
6	3604F161-80		Plate - Switch Mtg	1	Appelez-nous	-
6	3605F172-80		Plate	18	Appelez-nous	-
7	7601P120-60		Clock	1	Appelez-nous	-
7	7601P168-60		Clock	18	Appelez-nous	-
7	7601P177-60		Clock	21	Appelez-nous	-
7	7003P034-60		Shield, Clock Insulation	1	Appelez-nous	-
7	7601P156-60		Clock	16	Appelez-nous	-
8	7403P104-60		Switch, Oven Lamp	1	Appelez-nous	-
9	7214P007-60		Sleeve, Switch (blk)	1	Appelez-nous	-
10	7711P171-60		Knob, Clock (button-blk)	1			$ 19.90
10	7711P452-60		Button, Clock Set	18	Appelez-nous	-
11	5170P065-60		Harness, Oven Sensor	1	Appelez-nous	-
11	5170P088-60		Harness, Oven Sensor	15	Appelez-nous	-
12	7706P167-60		Trim, Filler Strip	1	Appelez-nous	-
13	7912P056-60		Glass Control Panel	1	Appelez-nous	-
14	7730P006-60		Lens	1	Appelez-nous	-
15	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	18			$ 12.13
15	7711P172-60		Knob, Clock (blk)	1			$ 23.55
16	3801F170-45		Bracket - Switch Plate	1	Appelez-nous	-
17	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85

    View Diagram in Separate Window       Print Part List
