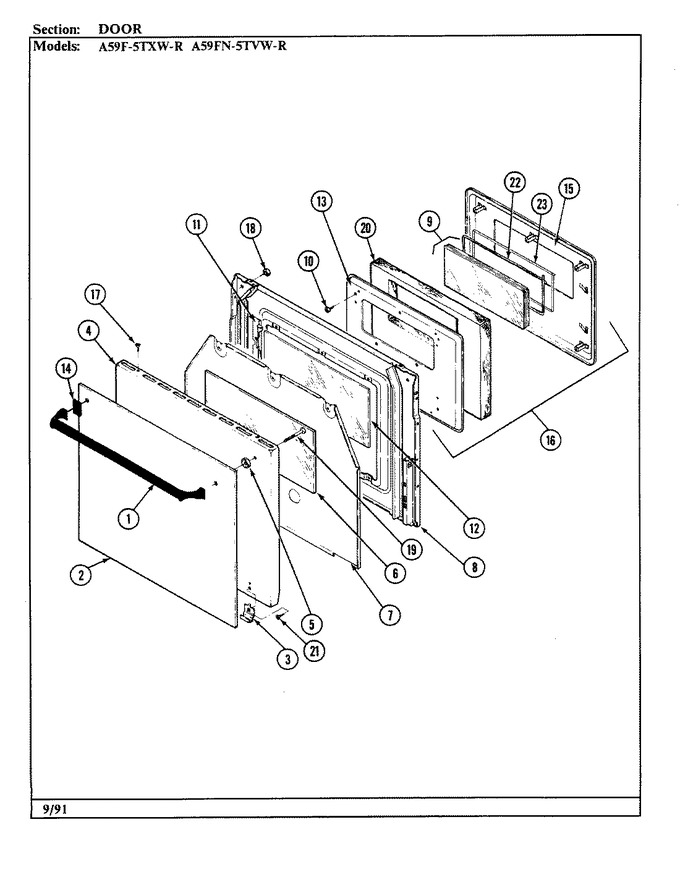

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P025-60		Handle, Oven Door	1	Appelez-nous	-
2	7902P120-60		Glass, Outer (black)	1	Appelez-nous	-
3	8270P010-60		Tape, Retainer Clip	1	Appelez-nous	-
3	3819F010-70		Clip, Glass Retainer (blk)	1	Appelez-nous	-
4	2401W049-70		Panel, (black)	1	Appelez-nous	-
5	74003986		Spacer, Glass   (Replaces: 8010P016-60)	1			$ 13.08
6	7902P135-60		Glass, Clear	1	Appelez-nous	-
7	3601F093-51		Baffle	1	Appelez-nous	-
8	8114P274-60		Label (cleaning Inst.)	1	Appelez-nous	-
8	2402W149-15		Lining, Oven Door	12	Appelez-nous	-
8	7107P017-60		Rivet	1	Appelez-nous	-
8	2402W186-15		Lining Assy Oven Door	13	Appelez-nous	-
8	2402W186-19		Lining Door	22	Appelez-nous	-
8	2402W128-15		Lining	1	Appelez-nous	-
9	7902S303-60		Window Pak	19	Appelez-nous	-
9	5700A091-60		Window Pak Assy.	1	Appelez-nous	-
9	7112P051-60		Clip, Retainer	1	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
11	3804F051-60		Retainer, Glass	1	Appelez-nous	-
12	7902P097-60		Glass, Inner	1			$ 63.87
13	2410F016-51		Pad, Inner	1	Appelez-nous	-
14	8010P015-60		Spacer, Handle (blk)	1	Appelez-nous	-
15	2410W041-15		Pad, Door	1	Appelez-nous	-
16	2410A041-15		Pad, Assy.	1	Appelez-nous	-
16	2410A041-19		Pad, Assy.	22	Appelez-nous	-
17	7101P276-60		Screw (blk)	1	Appelez-nous	-
17	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	1			$ 9.89
18	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
18	8003P009-60		Bumper, Door (square)	13	Appelez-nous	-
19	7101P012-60		Screw	1	Appelez-nous	-
19	W11164114		Screw   (Replaces: 7101P162-60)	1			$ 3.76
20	4804F006-60		Insulation Door Pad	1	Appelez-nous	-
21	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
22	7201P018-60		Gasket, Window	1	Appelez-nous	-
23	3804F022-45		Retainer	1	Appelez-nous	-
