SELECT A DIAGRAM

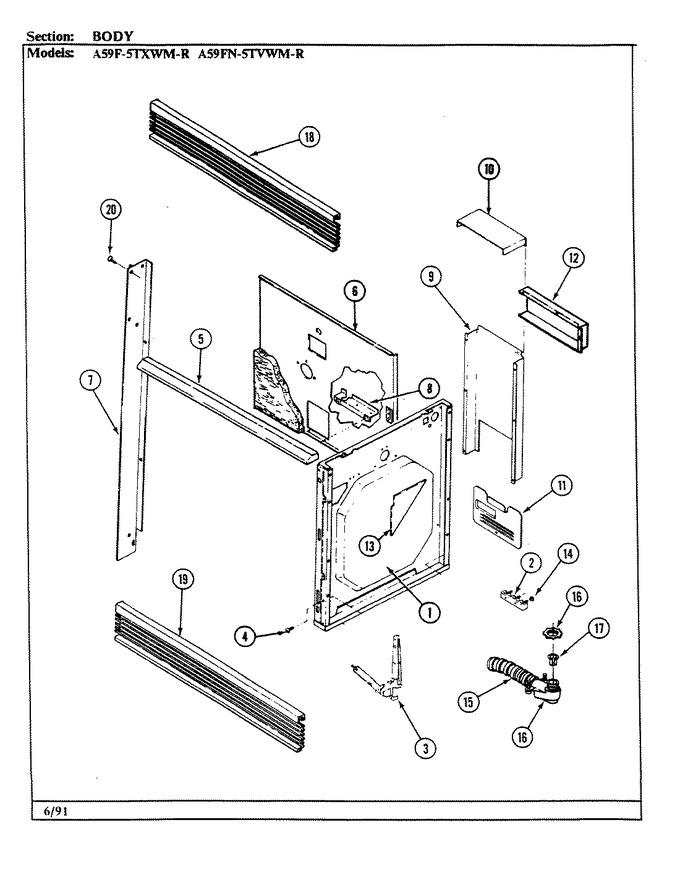

01 - Body
02 - Door
03 - Internal Controls
04 - Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.29 | ||||
| 1 | 3601F161-80 | Baffle, Oven Door | 1 |
|
- | ||||
| 1 | 4009W082-80 | Lining Assy Inner Side | 1 |
|
- | ||||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 1 | 7103P040-60 | Nut, Snap (wht) | 1 |
|
- | ||||
| 1 | 7103P045-60 | Nut, Nylon | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 04000040 | Spring, Mini-stanley | 1 |
|
- | ||||
| 3 | 7106P024-60 | Hinge (incl. Spring) | 1 |
|
- | ||||
| 4 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 5 | 7756P052-60 | Extrusion Ctr Trim Blk | 1 |
|
- | ||||
| 5 | 7756P053-60 | Extrusion Ctr Trim Wht | 1 |
|
- | ||||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 1 |
|
$ 6.70 | ||||
| 6 | 4002F103-80 | Back, Main | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 7 | 7750P040-60 | Extrusion Side Rt Bright | 1 |
|
- | ||||
| 7 | 7750P042-60 | Extrusion Side Lf Bright | 1 |
|
- | ||||
| 7 | 7750P043-60 | Extrusion Left | 1 |
|
- | ||||
| 7 | 3801F233-45 | Bracket Mw Mtg Top | 1 |
|
- | ||||
| 7 | 7750P041-60 | Extrusion Right Blk | 1 |
|
- | ||||
| 8 | 3605F163-80 | Plate Conduit | 1 |
|
- | ||||
| 9 | 4001F058-80 | Housing Main Wire | 1 |
|
- | ||||
| 10 | 4005F157-80 | Cover, Wire Housing | 1 |
|
- | ||||
| 11 | 4005F361-51 | Cover Access | 1 |
|
- | ||||
| 12 | 4005F299-51 | Cover, Redundant Thermo | 1 |
|
- | ||||
| 13 | 4005F351-51 | Cover Catch Assy | 1 |
|
- | ||||
| 14 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 1 |
|
Immediately | $ 6.47 | |||
| 15 | 7109P002-60 | Washer | 1 |
|
- | ||||
| 15 | 3414F098-44 | Tubing Conduit | 1 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 1 |
|
- | ||||
| 17 | 8018P002-60 | Sleeve, Tube | 1 |
|
- | ||||
| 18 | 7756P051-60 | Extrusion Top | 1 |
|
- | ||||
| 18 | 7756P044-60 | Extrusion (top) | 1 |
|
- | ||||
| 19 | 7756P050-60 | Extrusion, Bottom | 1 |
|
- | ||||
| 19 | 7756P049-60 | Extrusion (btm) | 1 |
|
- | ||||
| 20 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 20 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 |
