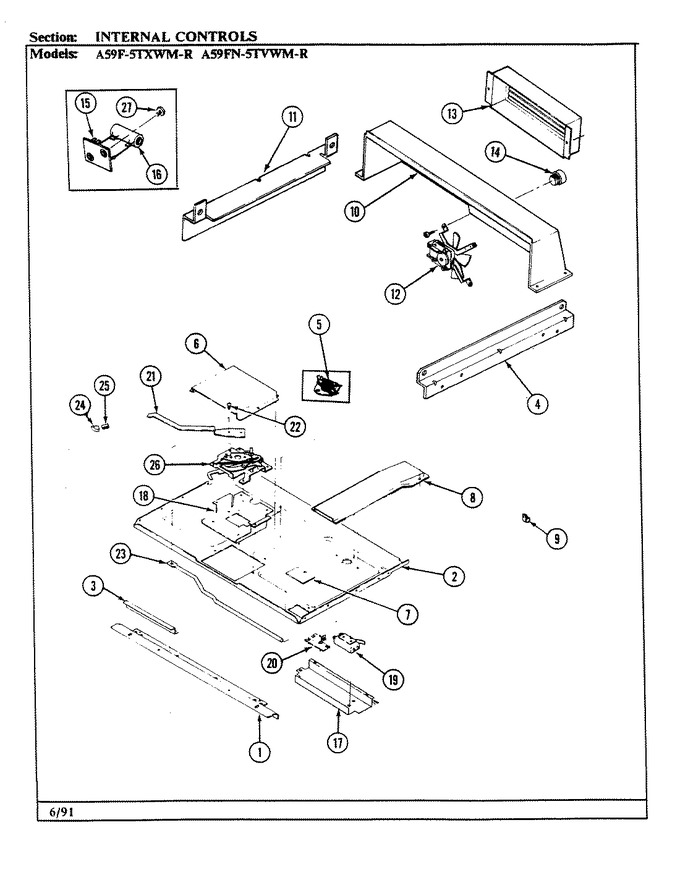

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4012F018-80 | Front,burner Box Bottom | 1 |
|
- | ||||
| 1 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 | ||||
| 2 | 4011F177-80 | Bottom Burner Box | 1 |
|
- | ||||
| 3 | 3604F149-80 | Shield, Terminal | 1 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 3801F230-45 | Support Mtg Rt | 1 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 7403P199-60 | Switch, Hi Limit | 1 |
|
- | ||||
| 6 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 7 | 4005F139-51 | Cover, Switch | 1 |
|
- | ||||
| 8 | 4006W052-45 | Vent Box Assy. | 1 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 10 | 4001F067-51 | Housing Fan | 1 |
|
- | ||||
| 11 | 3801F229-45 | Support Mtg Lf | 1 |
|
- | ||||
| 12 | 7427P010-60 | Fan Assy. | 1 |
|
- | ||||
| 12 | 7417P002-60 | Connector, Pin | 1 |
|
- | ||||
| 13 | 4005F374-51 | Cover Fan | 1 |
|
- | ||||
| 14 | 7408P014-60 | Receptacle, Fuse | 1 |
|
- | ||||
| 14 | 7416P002-60 | Fuse | 1 |
|
- | ||||
| 15 | 7401P016-60 | Block, Terminal | 1 |
|
- | ||||
| 16 | 7413A002-60 | Fan, Resistor Asy | 1 |
|
- | ||||
| 17 | 3818F027-45 | Channel, Switch | 1 |
|
- | ||||
| 18 | 3807F408-45 | Support, Catch Assy. | 1 |
|
- | ||||
| 19 | 7003P019-60 | Insulation, Switch (upper) | 1 |
|
- | ||||
| 19 | 7003P039-60 | Insulation, Switch | 1 |
|
- | ||||
| 19 | 7403P099-60 | Switch, Ovn Lock Asy----na | 1 |
|
- | ||||
| 20 | 7101P031-60 | Screw | 1 |
|
- | ||||
| 20 | 3807F193-45 | Support, Lock Switch | 1 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.29 | ||||
| 21 | 8009P009-60 | Lever, Door Lock | 1 |
|
- | ||||
| 22 | 7116P003-60 | Bolt | 1 |
|
- | ||||
| 23 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 24 | 7701P088-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 25 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 26 | 8002P020-60 | Catch Assy. | 1 |
|
- | ||||
| 27 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 |
