01 - Body

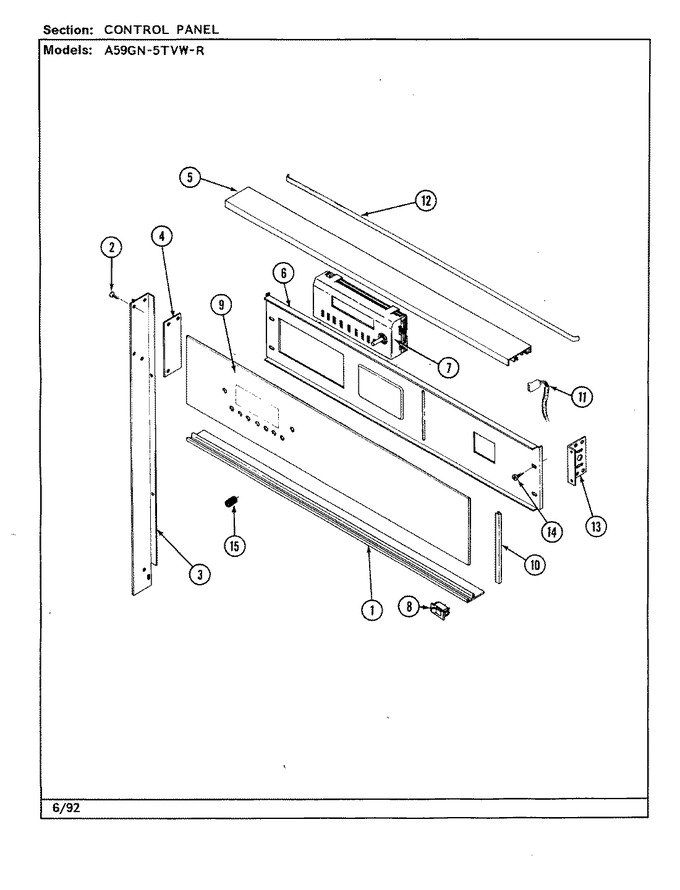

02 - Control Panel (a59gn-5tvw-r)
03 - Internal Controls
04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P042-60 | Extrusion | 01 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 7750P073-60 | Extrusion Side R. Matte | 01 |
|
- | ||||
| 3 | 7750P074-60 | Extrusion Side L Matte | 01 |
|
- | ||||
| 4 | 7726P028-60 | Trim, End Cap | 01 |
|
- | ||||
| 5 | 7752P003-60 | Extrusion, Top | 01 |
|
- | ||||
| 6 | 3605F176-80 | Plate Mtg | 01 |
|
- | ||||
| 7 | 7003P034-60 | Shield, Clock Insulation | 01 |
|
- | ||||
| 7 | 7601P203-60CP | Clock Nla (Replaces: 7601P203-60) | 01 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 8 | 7403P200-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 9 | 7721P011-60 | Panel, Control | 01 |
|
- | ||||
| 10 | 7720P150-60 | Trim (chr) | 01 |
|
- | ||||
| 11 | 5170P094-60 | Wire Harness | 01 |
|
- | ||||
| 12 | 7752P004-60 | Extrusion, Filler Trim | 01 |
|
- | ||||
| 13 | 3801F170-45 | Bracket - Switch Plate | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | 5125A332-60 | Wires Loose | 01 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 15 | 5170D140-60 | Harness Wire | 01 |
|
- |
