01 - Body
02 - Control Panel (a59gn-5tvw-r)
03 - Internal Controls

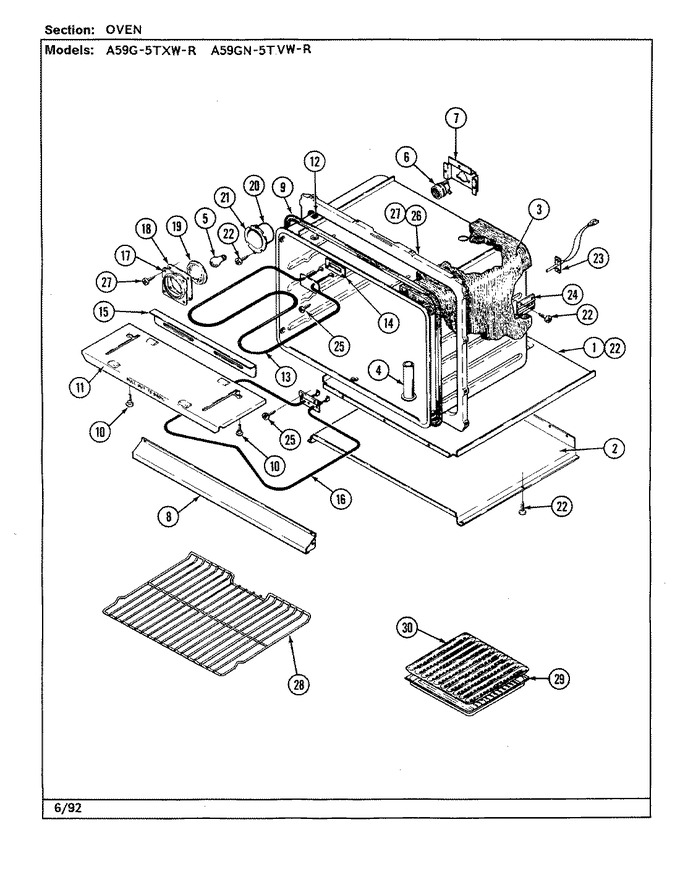

04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3804F102-80 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 2 | 3604F184-80 | Shield Bottom | 01 |
|
- | ||||
| 3 | 4804F008-60 | Insulation - Top | 01 |
|
- | ||||
| 3 | 4804F024-60 | Insulation | 01 |
|
- | ||||
| 4 | 7505P041-60 | Catalyst Burner | 01 |
|
- | ||||
| 4 | 8026A009-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 6 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 7 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 8 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 8 | 3604W155-71 | Shield, Lower Vent (wht) | 01 |
|
- | ||||
| 9 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 10 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 11 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 12 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- | ||||
| 13 | 7406P068-60 | Element, Broil | 01 |
|
- | ||||
| 14 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 15 | 3807F176-19 | Support, Broil Element | 01 |
|
- | ||||
| 16 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 01 |
|
$ 133.20 | ||||
| 17 | 3804F012-45 | Retainer, Lamp Guard | 01 |
|
- | ||||
| 18 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 19 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 20 | 4001F020-19 | Housing, Lamp | 01 |
|
- | ||||
| 21 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 23 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 01 |
|
Immediately | $ 39.55 | |||
| 24 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 25 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 26 | 2201F061-19 | Front, Oven Upper | 01 |
|
- | ||||
| 27 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 28 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 29 | 4396923 | Pan, Broil (Replaces: 3401F004-19) | 01 |
|
Immediately | $ 52.04 | |||
| 30 | 4396923 | Insert, Broil Pan (Replaces: 3413F002-19) | 01 |
|
Immediately | $ 52.04 |
