SELECT A DIAGRAM

01 - Body

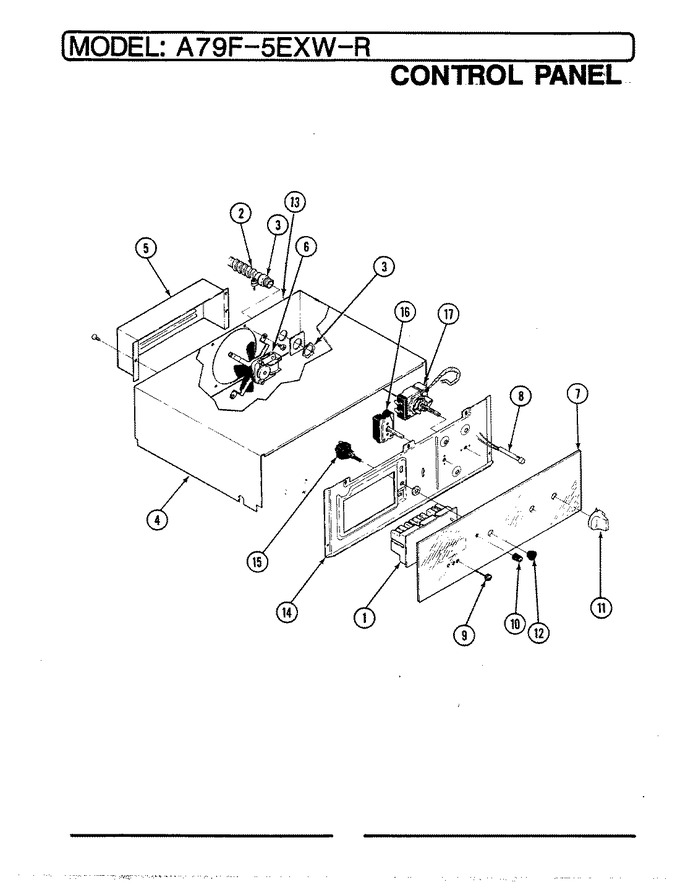

02 - Control Panel


03 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P047-60		+ Clock		Appelez-nous	-
2	7434P006-60		Conduit, Flexible		Appelez-nous	-
3	7417P003-60		Connector, Cable		Appelez-nous	-
4	4005F150-51		Cover, Wire		Appelez-nous	-
5	4005F177-51		Cover, Fan		Appelez-nous	-
6	7427P006-60		Fan Assembly		Appelez-nous	-
7	7912P015-60		Glass, Control Panel		Appelez-nous	-
8	7407P007-60		Light, Indicator----na		Appelez-nous	-
9	7711P171-60		Knob, Clock (button-blk)				$ 19.90
10	7711P172-60		Knob, Clock (blk)				$ 23.55
11	7711P291-60		Knob (chr)		Appelez-nous	-
12	7214P007-60		Sleeve, Switch (blk)		Appelez-nous	-
13	3605F131-51		Plate, Reinforcement		Appelez-nous	-
14	3605F113-80		Plate, Backing		Appelez-nous	-
15	7403P109-60		Switch, Push (blk)		Appelez-nous	-
16	7403P023-60		Switch, Selector		Appelez-nous	-
17	7404P039-60		Thermostat, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
