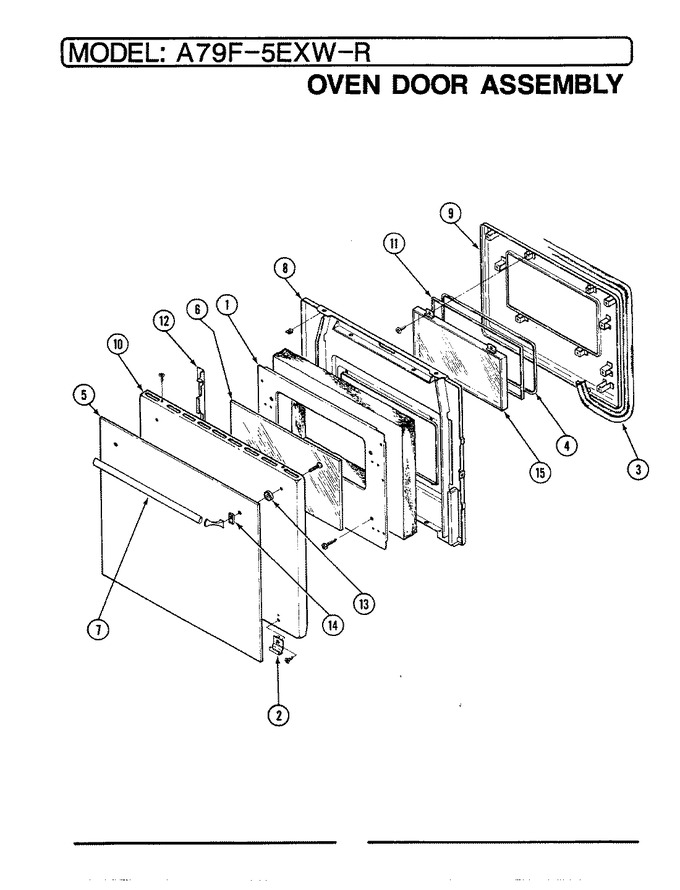

03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W131-51 | Baffle, Door Assembly |
|
- | |||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) |
|
- | |||||
| 3 | 7201P004-60 | Gasket |
|
- | |||||
| 4 | 7201P020-60 | Gasket |
|
- | |||||
| 5 | 7902P106-60 | Dr Glass Black |
|
- | |||||
| 6 | 7902P097-60 | Glass, Inner |
|
$ 63.87 | |||||
| 7 | 7701P024-60 | Handle, Door (blk) |
|
$ 67.19 | |||||
| 8 | 2402W096-12 | Lining Assy, Inner Dr |
|
- | |||||
| 9 | 2410W034-15 | Pad, Door |
|
- | |||||
| 10 | 2401F045-70 | Panel, Oven Door |
|
- | |||||
| 11 | 3804F021-45 | Retainer, Gasket |
|
- | |||||
| 12 | 3804F051-80 | Retainer, Glass |
|
- | |||||
| 13 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) |
|
$ 13.08 | |||||
| 14 | 8010P028-60 | Spacer, Door Handle |
|
- | |||||
| 15 | 5700A082-60 | Window Assy. |
|
$ 164.77 |
