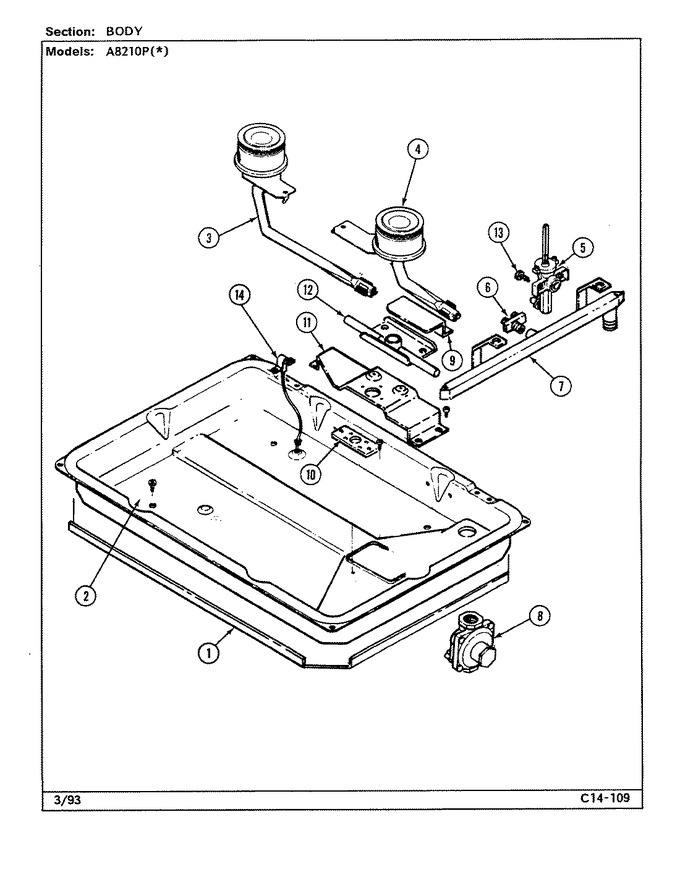

SELECT A DIAGRAM
01 - Body
02 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F185-51 | Baffle, Bottom |
|
- | |||||
| 2 | 4011F140-19 | Bottom Burner Box |
|
- | |||||
| 3 | 7505P160-60 | Burner, Top Left |
|
- | |||||
| 4 | 7505P161-60 | Burner, Top Right |
|
- | |||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) |
|
$ 4.29 | |||||
| 5 | 7502P121-60 | Valve, Hi-med-lo |
|
- | |||||
| 5 | 7724P004-60 | Cover, Burner Valve |
|
- | |||||
| 6 | 7507P001-60 | Filter, Pilot |
|
- | |||||
| 7 | 7513P059-60 | Pipe, Manifold |
|
- | |||||
| 8 | 7510P002-60 | Regulator, Pressure |
|
- | |||||
| 9 | 3604F065-45 | Support, Pilot |
|
- | |||||
| 10 | 3807F334-35 | Support, Pilot |
|
- | |||||
| 11 | 3807F101-51 | Support |
|
- | |||||
| 12 | 7506P012-60 | Tube, Flash |
|
- | |||||
| 13 | 7101P043-60 | Screw, Control Valve |
|
- | |||||
| 14 | 7505P159-60 | Burner, Pilot 18-3/4 |
|
- |
