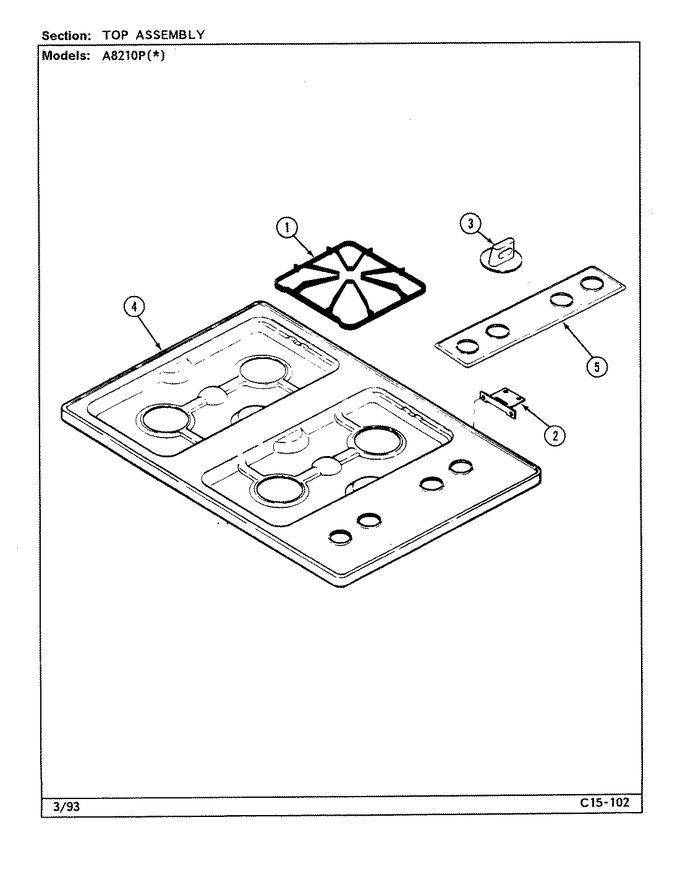

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 2 | 7106P017-60 | Hinge, Top | 01 |
|
- | ||||
| 2 | 7103P110-60 | Nut, Pal | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P261-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 7733P045-60 | Knob, Burner (black) | 01 |
|
$ 16.33 | ||||
| 4 | 2001W076-30 | Top, Main (stls) | 01 |
|
- | ||||
| 4 | 2001W067-84 | Top, Main (alm) | 01 |
|
- | ||||
| 4 | 2001W067-81 | Top, Main (wht) | 01 |
|
- | ||||
| 5 | 8113P037-60 | Manual, Use & Care | 01 |
|
- | ||||
| 5 | 7719P062-60 | Nameplate, Admiral (blk) | 01 |
|
- | ||||
| 5 | 7101P294-60 | Screw | 01 |
|
- | ||||
| 5 | 7720P146-60 | Panel, Control (blk) | 01 |
|
- |
