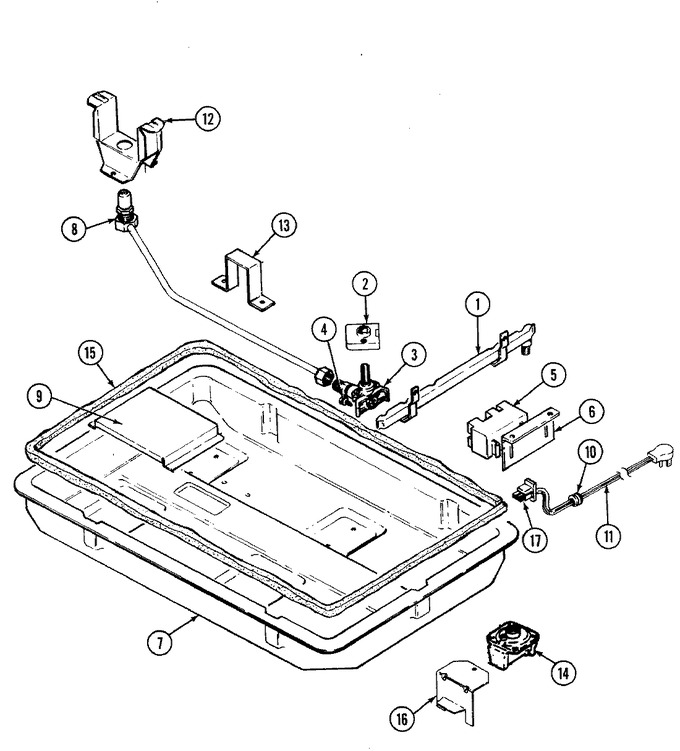

01 - Body (a8241rt-l)
02 - Top Assembly (a8241rt-l)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001348 | Pipe, Manifold | 10 |
|
- | ||||
| 1 | WP74001380 | Seal, Manifold Pipe (Replaces: 74001380) | 10 |
|
$ 58.91 | ||||
| 2 | WP7403P367-60 | Switch, Burner (Replaces: 7403P367-60) | 10 |
|
$ 132.10 | ||||
| 3 | 74001381 | Valve, Burner | 10 |
|
- | ||||
| 4 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 5 | 8215557 | Module, Spark (4+0) (Replaces: 74004283) | 10 |
|
Immediately | $ 124.99 | |||
| 6 | 74004501 | Bracket, Module | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 74004636 | Box, Burner | 10 |
|
- | ||||
| 8 | 74001376 | Orifice Assy. | 10 |
|
- | ||||
| 8 | 74001374 | Orifice Assy. | 10 |
|
- | ||||
| 8 | 74001373 | Orifice Assy. | 10 |
|
- | ||||
| 8 | 74001375 | Orifice Assy. | 10 |
|
- | ||||
| 9 | 5125A234-60 | Wires, Loose | 10 |
|
- | ||||
| 9 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 10 | 550707 | Bushing - Strain Relief | 10 |
|
- | ||||
| 11 | 7402P014-60 | Cord, Power | 10 |
|
- | ||||
| 12 | 74001660 | Support, Orifice Fitting | 10 |
|
- | ||||
| 13 | 3801F298-45 | Bracket, Main Top | 10 |
|
- | ||||
| 14 | 74001361 | Regulator, Pressure | 10 |
|
- | ||||
| 15 | 8270P053-60 | Tape, Seal Roll | 10 |
|
- | ||||
| 16 | 3801F192-45 | Bracket, Tie Down | 10 |
|
- | ||||
| 16 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 17 | 7401P018-60 | Block | 10 |
|
- | ||||
| 17 | 7401P017-60 | Block, Disconnect (pin) | 10 |
|
- |
