01 - Body (a8241rt-l)

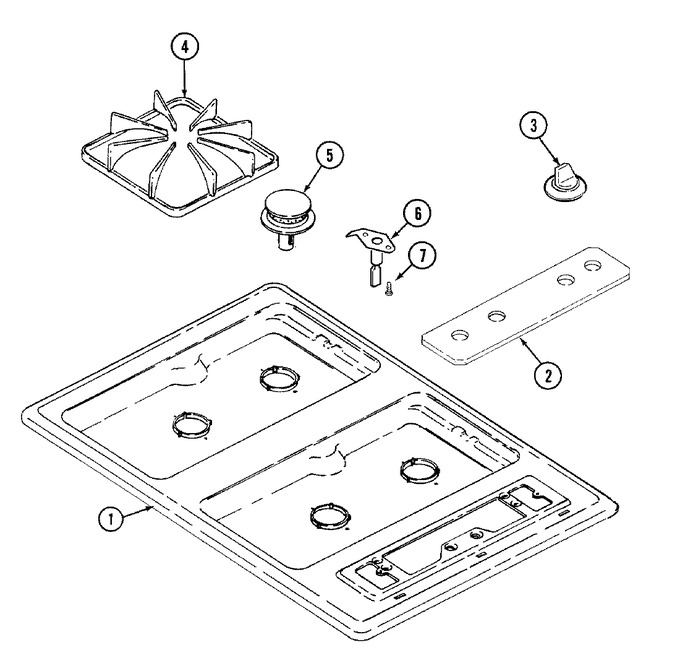

02 - Top Assembly (a8241rt-l)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005153 | Top, Main (bsq) | 10 |
|
- | ||||
| 2 | 7720P146-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 7719P062-60 | Nameplate, Admiral (blk) | 10 |
|
- | ||||
| 3 | WP74001253 | Knob, Top Burner (blk) (Replaces: 74001253) | 10 |
|
$ 19.77 | ||||
| 4 | 74001059 | Grate (blk) | 10 |
|
- | ||||
| 5 | WP3412D024-09 | Burner, Sealed (blk) (Replaces: 74003963) | 10 |
|
Immediately | $ 92.69 | |||
| 6 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 7 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| NI | 74004654 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| NI | 74001971 | Manual, Use & Care | 10 |
|
- |
