SELECT A DIAGRAM

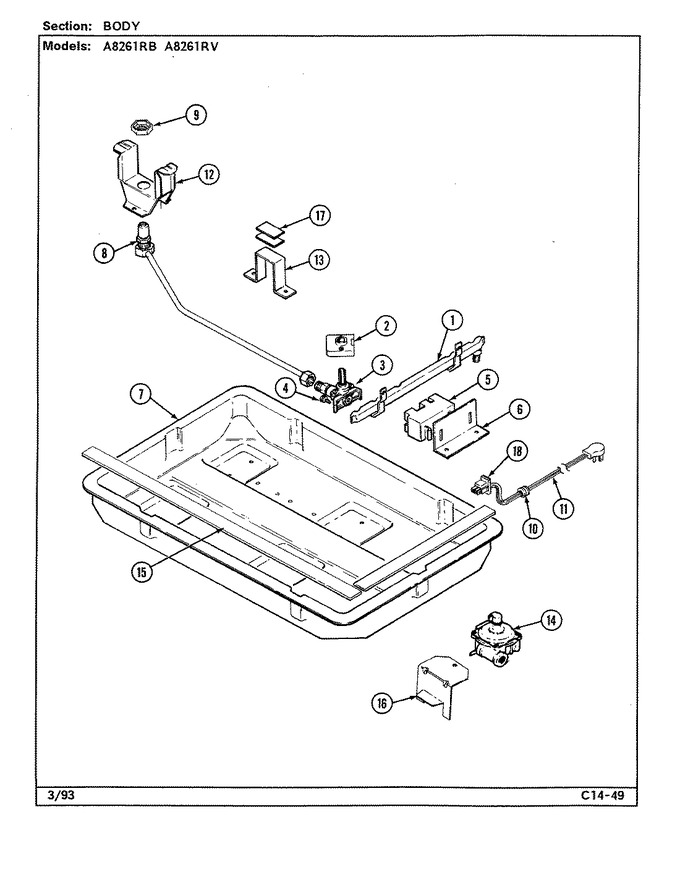

01 - Body
02 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7513P098-60 | Pipe, Manifold | 1 |
|
- | ||||
| 2 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 1 |
|
$ 118.82 | ||||
| 3 | 7502P106-60 | Valve, Top Burner | 1 |
|
- | ||||
| 4 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 5 | 12001596 | Module, Spark (Replaces: 7431P023-60) | 1 |
|
Immediately | $ 85.93 | |||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 3801F304-45 | Bracket, Spark Module | 1 |
|
- | ||||
| 7 | 4011F212-80 | Box, Burner | 1 |
|
- | ||||
| 8 | 7507P101-60 | Orifice | 1 |
|
- | ||||
| 8 | 7507P103-60 | Fitting, Orifice | 1 |
|
- | ||||
| 9 | 7103P119-60 | Palnut | 1 |
|
- | ||||
| 10 | 8007P003-60 | Bushing, Snap | 1 |
|
- | ||||
| 10 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 1 |
|
$ 4.29 | ||||
| 11 | 7208P019-60 | Seal, Manifold Pipe | 1 |
|
- | ||||
| 11 | 7402P014-60 | Cord, Power | 1 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 7118P018-60) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | 3807F442-51 | Support, Orifice | 1 |
|
- | ||||
| 13 | 3801F308-45 | Bracket, Main Top | 1 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 1 |
|
- | ||||
| 15 | 12400021 | Tape Burner Box Seal 107`` | 1 |
|
- | ||||
| 16 | 3801F192-45 | Bracket, Tie Down | 1 |
|
- | ||||
| 17 | 12400008 | Tape, Seal 112`` Long | 1 |
|
- | ||||
| 18 | 7401P017-60 | Block, Disconnect (pin) | 1 |
|
- | ||||
| 18 | 7401P018-60 | Block | 1 |
|
- | ||||
| 18 | 5125A234-60 | Wires, Loose | 1 |
|
- |
