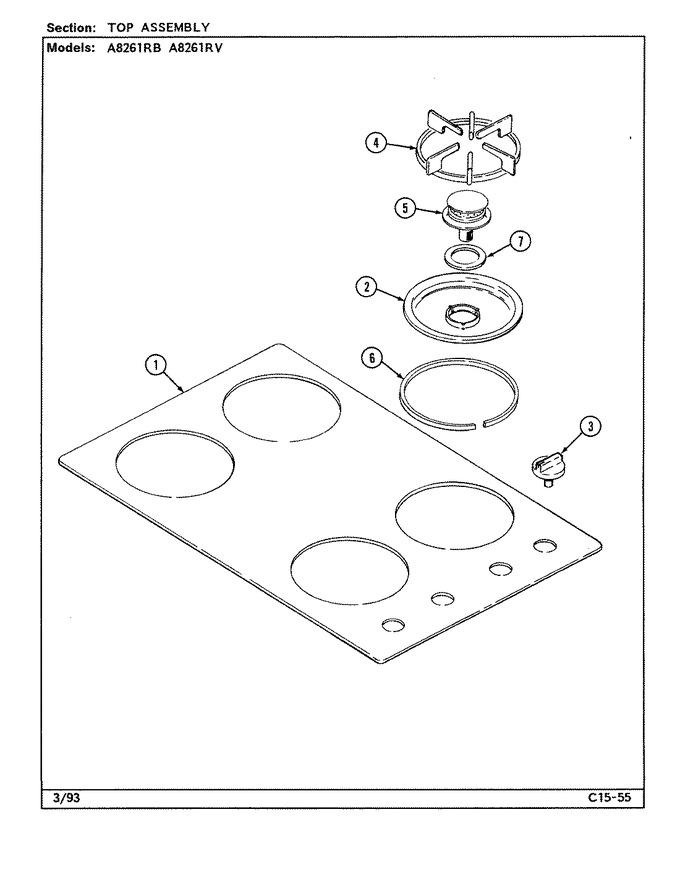

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7918P023-60 | Glass Main Top |
|
- | |||||
| 2 | 7101P314-60 | Screw |
|
- | |||||
| 2 | 3424F002-90 | Bowl, Drip (blk) |
|
- | |||||
| 3 | 7733P045-60 | Knob, Burner (black) |
|
$ 16.33 | |||||
| 4 | 2003F022-00 | Grate Burner (black) |
|
- | |||||
| 5 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) |
|
Immediately | $ 92.69 | ||||
| 6 | 7101P286-60 | Screw, Burner Mtg |
|
$ 7.00 | |||||
| 6 | 12400008 | Tape, Seal 112`` Long |
|
- | |||||
| 7 | 8113P037-60 | Manual, Use & Care |
|
- | |||||
| 7 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) |
|
Immediately | $ 92.69 |
