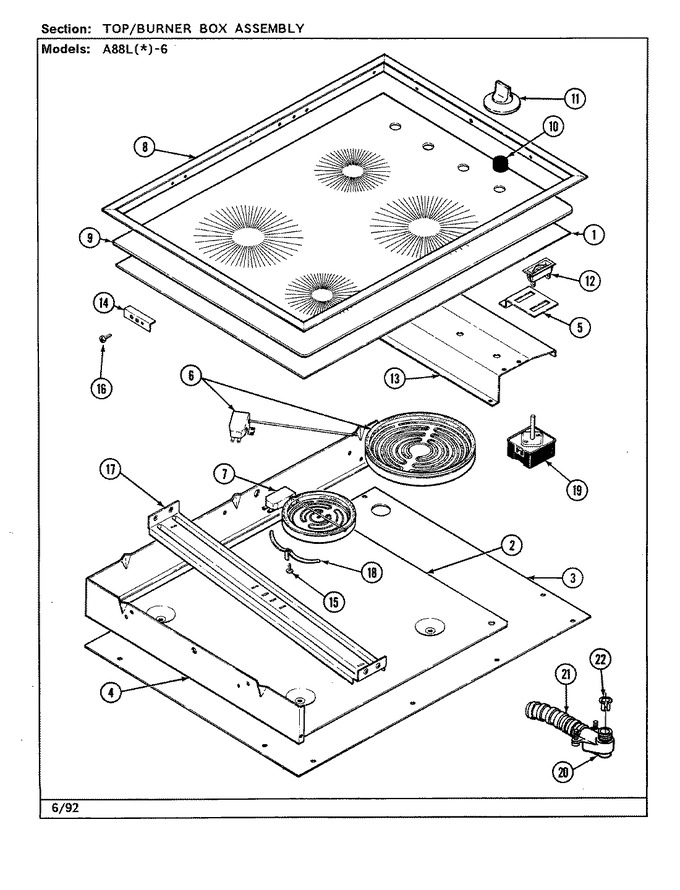

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Body
03 - Control Panel/top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F192-51 | Bottom Burner Box | 1 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 3 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 4 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| 5 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 1 |
|
$ 4.29 | ||||
| 6 | 7101P004-60 | Screw | 1 |
|
- | ||||
| 7 | 712310 | Tinnerman | 1 |
|
- | ||||
| 7 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 8 | Y707121 | Screw | 1 |
|
- |
