01 - Blower Plenum
02 - Body

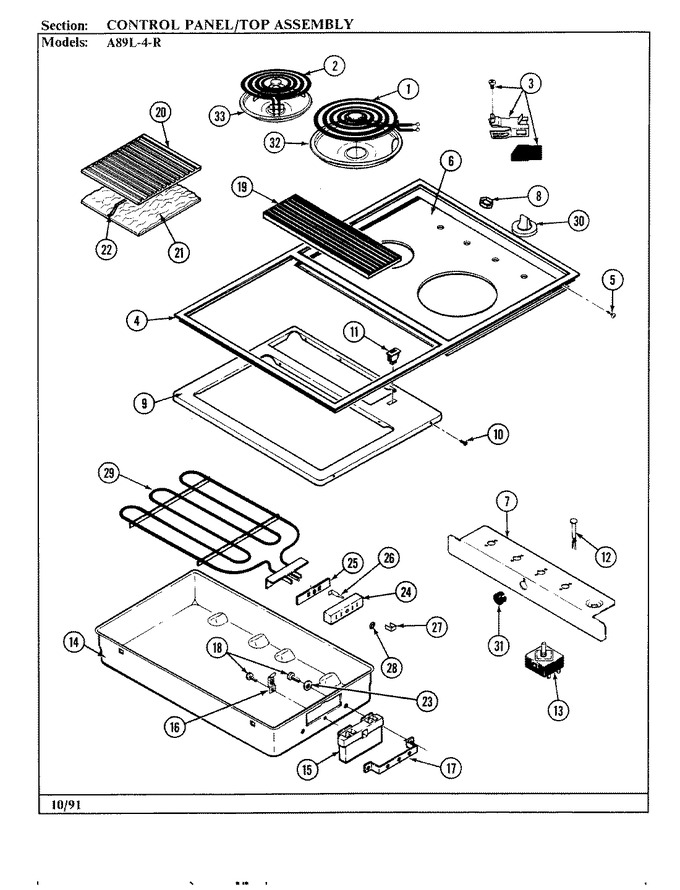

03 - Control Panel/top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3191454 | Element (8``) (Replaces: 7406P055-60) | 1 |
|
$ 163.63 | ||||
| 2 | WP660532 | Element (6``) (Replaces: 7406P054-60) | 1 |
|
Immediately | $ 36.90 | |||
| 3 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 1 |
|
Immediately | $ 28.45 | |||
| 4 | 7706P292-60 | Frame Top | 1 |
|
- | ||||
| 5 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 1 |
|
$ 6.70 | ||||
| 6 | 7719P062-60 | Nameplate, Admiral (blk) | 1 |
|
- | ||||
| 6 | 2002F085-90 | Top, Main | 1 |
|
- | ||||
| 7 | 3604F133-80 | Shield Switch Wiring | 1 |
|
- | ||||
| 8 | 7103P021-60 | Nut, Switch | 1 |
|
- | ||||
| 9 | 2002F069-90 | Top, Main Control Panel | 1 |
|
- | ||||
| 10 | 7101P242-60 | Screw | 1 |
|
- | ||||
| 11 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 12 | 7407P062-60 | Lamp Signal | 1 |
|
- | ||||
| 13 | W10900107 | Switch, Infinite (Replaces: 7403P027-60) | 1 |
|
Immediately | $ 51.87 | |||
| 14 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 15 | 5111P103-60 | Wire, Receptacle (purple) | 1 |
|
- | ||||
| 15 | 5111P181-60 | Wire Receptacle Ctrl - Violet | 1 |
|
- | ||||
| 15 | 5155P397-60 | Wire Receptacle Ctrl - Brown | 1 |
|
- | ||||
| 15 | 5111P182-60 | Wire Receptacle Ctrl - Yellow | 1 |
|
- | ||||
| 15 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 16 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 17 | Y702698 | Bracket | 1 |
|
- | ||||
| 18 | 7101P294-60 | Screw | 1 |
|
- | ||||
| 19 | 8312P051-60 | Grill, Air | 1 |
|
- | ||||
| 20 | 8312P068-60 | Grill Grate | 1 |
|
- | ||||
| 21 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 22 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 23 | Y707664 | Washer | 1 |
|
- | ||||
| 24 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 25 | Y700449 | Insulator | 1 |
|
- | ||||
| 26 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 11.34 | |||
| 27 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 28 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 29 | Y04100007 | Element, Grill (240v) | 1 |
|
- | ||||
| 29 | 7109P012-60 | Washer, Lock | 1 |
|
- | ||||
| 30 | WP7737P026-60 | Knob, Switch (Replaces: 7737P026-60) | 1 |
|
$ 20.00 | ||||
| 31 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| 32 | WPW10290350 | Bowl, Drip (8``) (blk) (Replaces: 7725P023-60) | 1 |
|
Immediately | $ 15.25 | |||
| 33 | W10290353RW | Bowl, Drip (6``) (blk) (Replaces: 7725P022-60) | 1 |
|
Immediately | $ 19.27 |
