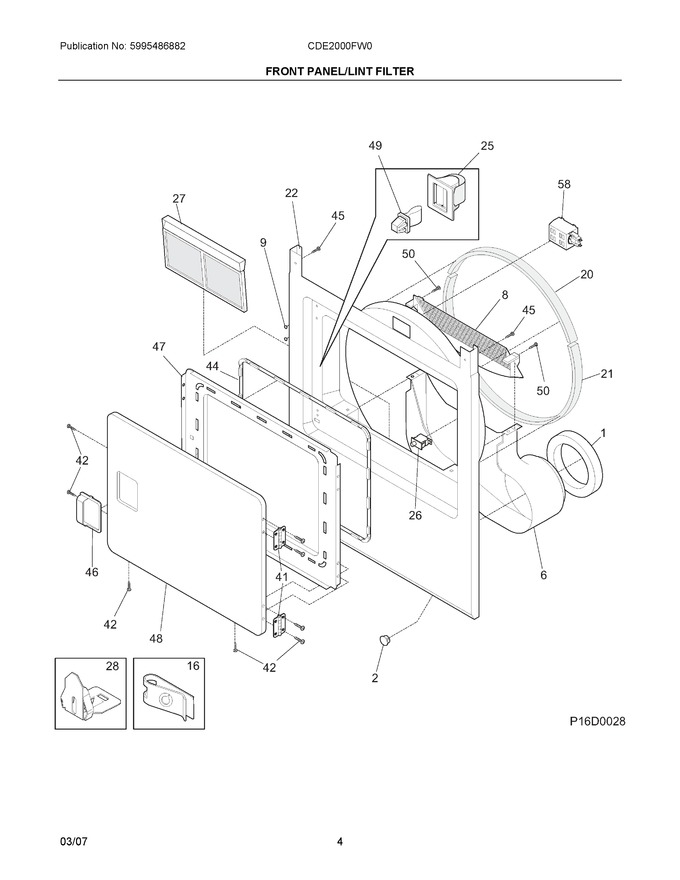

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal, Air Duct			Immediately	$ 9.22
2	131397000		Plug, Dome, White				$ 14.12
6	131621900		Duct, Air		Appelez-nous	-
8	131845801		Cover, Lint Housing, W/moist Sensor				$ 167.66
9	131633200		Plug, White				$ 15.90
16	134440100		Clip, U-nut				$ 7.30
20	134440200		Seal, Felt, Upper			Immediately	$ 41.24
21	5303937183		Seal, Felt, Lower   (Replaces: 134134700)			Immediately	$ 35.87
22	131845902		Panel, Front, White, W/lamp Hole		Appelez-nous	-
25	131658800		Door Catch			Immediately	$ 68.38
26	134813601		Switch, Door, Rectangle, With Drum Light   (Replaces: 131843101)			Immediately	$ 33.09
27	131450300		Trap, Lint Blade Assy			Immediately	$ 30.47
28	134440000		Clip, Guide		Appelez-nous	-
41	134222900		Hinge, Dryer Door				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 14.89
44	137551901		Gasket, Door Seal   (Replaces: 131129900)			Immediately	$ 41.00
45	134207300		Screw, Pan Head, 8-18ab X 0.250		Appelez-nous	-
46	131644700		Handle, Door, White			Immediately	$ 59.54
47	131844104		Panel, Inner Door, White				$ 224.12
48	131789303		Panel, Outer Door, White				$ 168.47
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
58	131843500		Lamp Assy, Drum Light, W/mtg Bracket				$ 73.00
NIA	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	131474700		Insulation				$ 33.67
NIA	131657500		Wiring Harness, Moisture Sensor				$ 77.81
