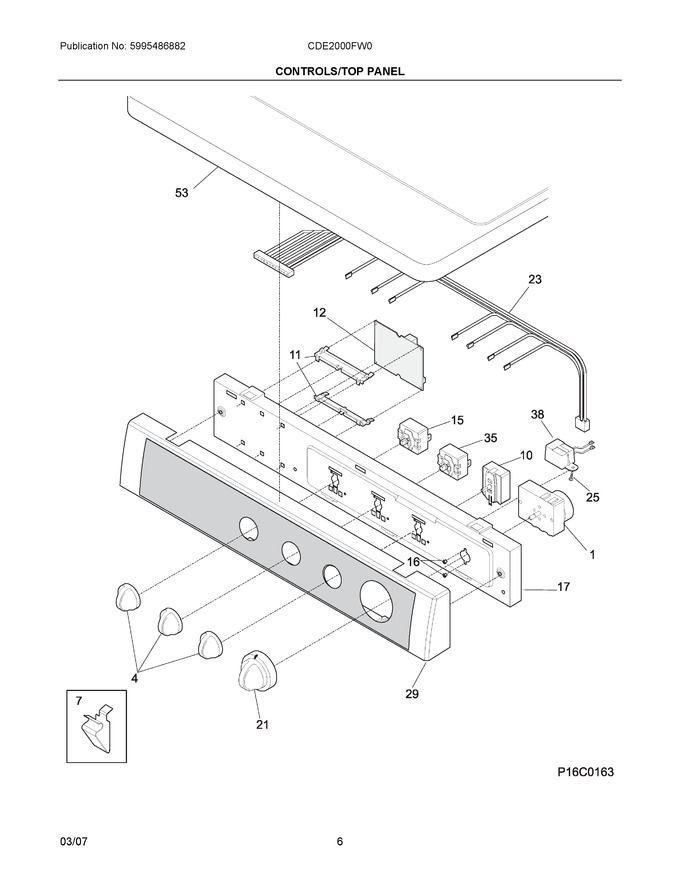

04 - Controls/top Panel
05 - Motor
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131789200 | Timer, Dryer |
|
Immediately | $ 234.23 | ||||
| 4 | 131965300 | Knob, Rotary, White/gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip, Top-to-front |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch, Start, Turn Type |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket, Pc Board Mtg., (2) |
|
$ 44.40 | |||||
| 12 | 134216300 | Control Board, Moisture Sensor |
|
$ 67.62 | |||||
| 15 | 134046800 | Switch, Temp Control, 3 Posn Rotary |
|
$ 106.26 | |||||
| 16 | 134034300 | Screw, Pan Hd Phillips, 8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket, Control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob, Timer, White/gray, Assy |
|
Immediately | $ 49.62 | ||||
| 23 | 134063800 | Wiring Harness, Control |
|
$ 240.61 | |||||
| 25 | 5303015671 | Screw, Hex Washer Head, 8-18 X 0 .375, Cup Point |
|
- | |||||
| 29 | 131666983 | Console, Frame, W/trim |
|
- | |||||
| 35 | 131243200 | Switch, 2 Position |
|
- | |||||
| 38 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| 53 | 134086812 | Panel, Dryer Top, White, Stackable |
|
$ 336.42 | |||||
| NI | 134296400 | Instructions, Installation |
|
- | |||||
| NI | 134101400 | Terminal Block, Main |
|
Immediately | $ 55.99 | ||||
| NIA | 134110500 | Wiring Harness, Main |
|
$ 251.95 |
