Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4002F041-51 Back, Main Appelez-nous -
2 7112P020-60 Clip, Oven Front Appelez-nous -
3 4005F088-80 Cover Appelez-nous -
3 WP7101P126-60 Screw   (Replaces: 7101P061-60) In-Stock Immediately $ 6.85

4 4006W077-23 Box Assy, Flue Appelez-nous -
5 7402P014-60 Cord, Power Appelez-nous -
6 7706P078-60 Extrusion, Top (wht) Appelez-nous -
6 W11233072 Screw (zinc)   (Replaces: 7101P041-60) In-Stock Immediately $ 12.62

7 2618F088-51 Panel, Side Lf. Appelez-nous -
7 WP7101P126-60 Screw   (Replaces: 7101P061-60) In-Stock Immediately $ 6.85

7 2618F089-51 Panel, Side Right Appelez-nous -
8 W11233072 Screw (zinc)   (Replaces: 7101P041-60) In-Stock Immediately $ 12.62

8 7756P045-60 Extrusion, Front (top) Appelez-nous -
8 7719P067-60 Nameplate Appelez-nous -
9 790414 Cover Box Wall Oven Appelez-nous -
10 7756P026-60 Extrusion, Vent Appelez-nous -
11 7002P107-60 Insulation, Wrapper Appelez-nous -
12 7002P109-60 Insulation, Top & Rear Appelez-nous -
13 7706P075-60 Extrusion, Bottom (chr) Appelez-nous -
14 7750P033-60 Extrusion, Side-l Appelez-nous -
15 7750P034-60 Extrusion, Side-r Appelez-nous -
15 7103P040-60 Nut, Snap (wht) Appelez-nous -
15 7103P051-60 Nut, Snap Appelez-nous -
15 WP7103P114-60 Nut, Snap (round-wht)   (Replaces: 7103P039-60) Special Order $ 9.89

16 W11233072 Screw (zinc)   (Replaces: 7101P041-60) In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

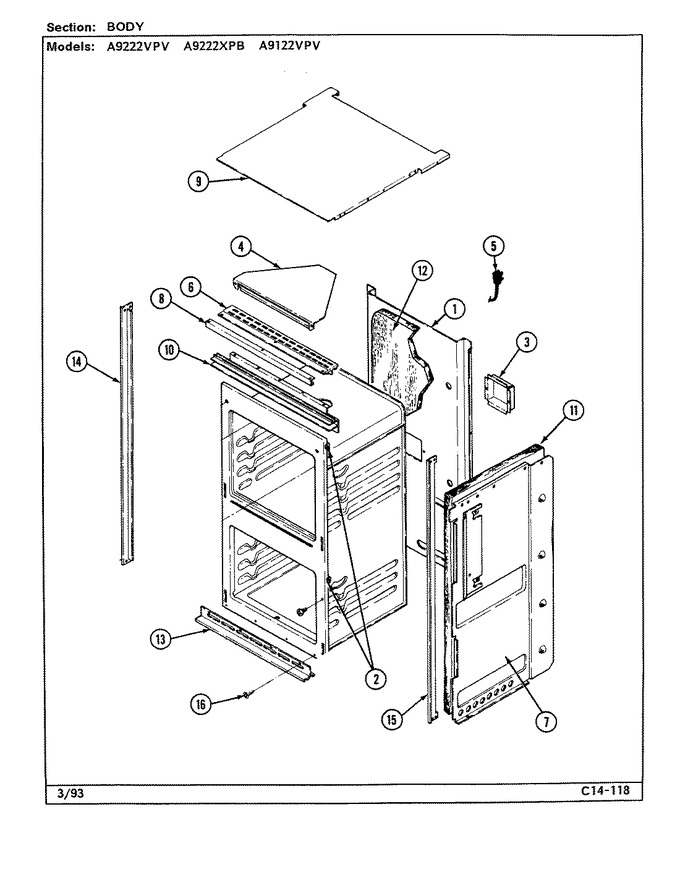

Diagram for A9222VPV
