New Model Search:

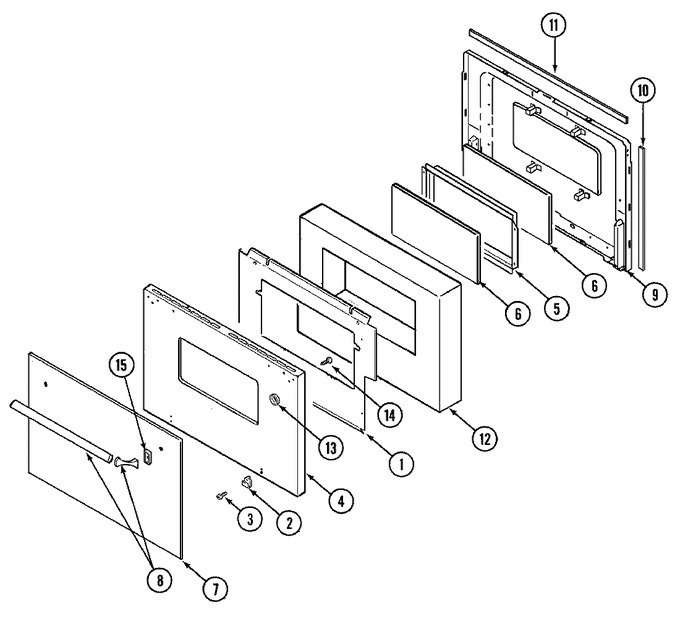

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | 3601F102-51 | Baffle, Upper Door | 01 |
|
- | ||||
| 2 | 7112P094-60 | Clip, Glass (wht) | 01 |
|
$ 7.19 | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 4 | 7101P242-60 | Screw | 01 |
|
- | ||||
| 4 | 2401F111-71 | Panel, Door (wht) | 01 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 6 | 7902P386-60 | Glass, Inner | 01 |
|
- | ||||
| 7 | 7902P332-60 | Glass, Door (wht) | 01 |
|
- | ||||
| 8 | 7701P086-60 | Handle, Door (wht) | 01 |
|
- | ||||
| 9 | 2402W133-16 | Lining Assy, Oven Door | 01 |
|
- | ||||
| 10 | 7212P003-60 | Seal, Oven Door | 01 |
|
$ 46.94 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 12 | 7002P015-60 | Insulation, Door | 01 |
|
- | ||||
| 13 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 14 | WP3400074 | Screw (Replaces: 7101P068-60) | 01 |
|
$ 6.47 | ||||
| 15 | 8010P077-60 | Spacer, Handle (wht) | 01 |
|
- |
