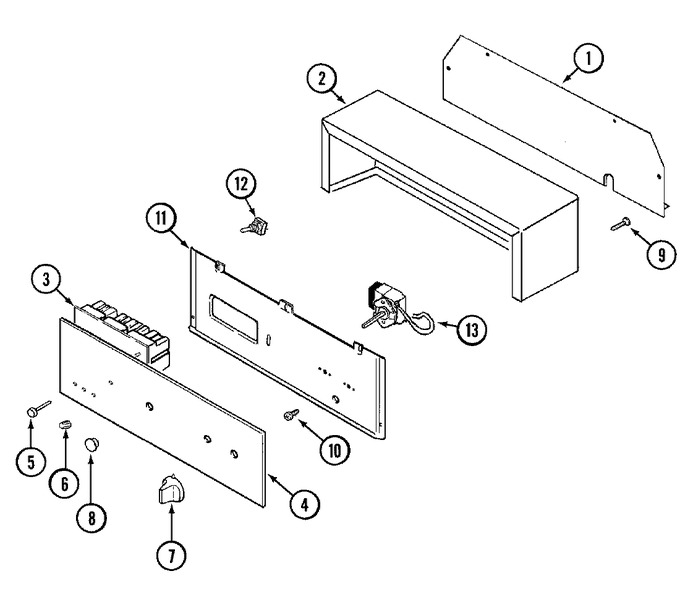

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F151-51 | Cover, Rear Wire | 01 |
|
- | ||||
| 2 | 4005F153-51 | Cover, Wire | 01 |
|
- | ||||
| 3 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 4 | 7912P031-60 | Glass, Control Panel | 01 |
|
- | ||||
| 5 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 6 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 7 | 7711P085-60 | Knob | 01 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 9 | 3605F170-80 | Plate, Switch | 01 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 11 | 7404P059-60 | Thermostat | 01 |
|
- | ||||
| 12 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 13 | 5180D145-60 | Harness Upper | 01 |
|
- | ||||
| NI | 8112P064-60 | Manual, Use & Care | 01 |
|
- |
