Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3601F215-45 Baffle, Oven Burner Appelez-nous -
2 3801F235-34 Bracket Regulator Appelez-nous -
3 7505P065-60 Burner, Oven Appelez-nous -
4 7507P008-60 Fitting, Bake Bnr. Appelez-nous -
5 WP3351614 Screw   (Replaces: 7101P328-60) In-Stock Immediately $ 6.26

5 12400035 Igniter, Oven   (Replaces: 7432P076-60) In-Stock Immediately $ 60.44

5 4005F363-45 Cover Ignitor Wire Appelez-nous -
6 7103P030-60 Nut, Wing Special Order $ 6.37

7 7510P036-60 Regulator Pressure Appelez-nous -
8 3807F122-34 Support Appelez-nous -
9 3414F097-44 Tubing, Regulator (3/8``) Appelez-nous -
10 3414F039-44 Tubing, 3/8 X 31 Appelez-nous -
11 7501P018-60 Valve, Bake Appelez-nous -
12 7502P002-60 Valve, Shut Off Appelez-nous -
13 1555251 Nut, Loxit (3/8``) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

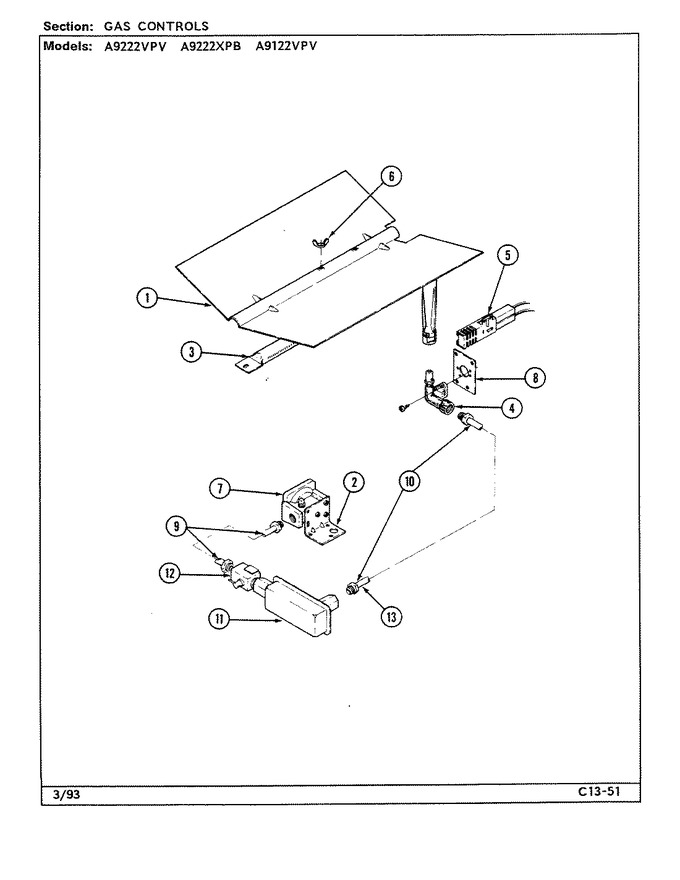

Diagram for A9222XPB
