New Model Search:

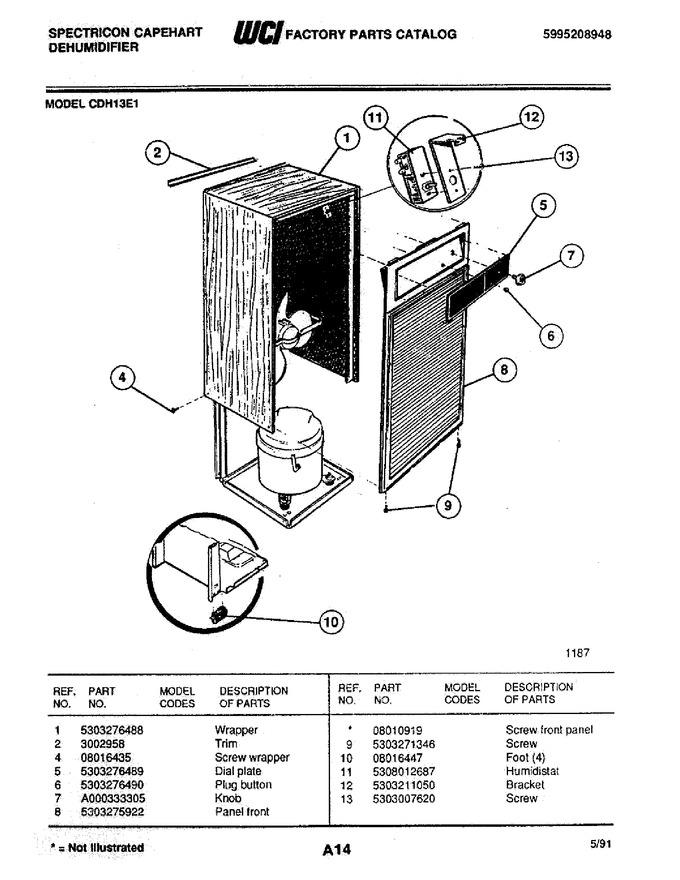

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276488 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 08016435 | Screw Wrapper |
|
- | |||||
| 5 | 5303276489 | Dial Plate |
|
- | |||||
| 6 | 5303276490 | Plug Button |
|
- | |||||
| 7 | A000333305 | Knob |
|
- | |||||
| 8 | 5303275922 | Panel Front |
|
- | |||||
| 9 | 5303271346 | Screw |
|
- | |||||
| 10 | 08016447 | Foot |
|
- | |||||
| 11 | 5308012687 | Humidistat |
|
- | |||||
| 12 | 5303211050 | Bracket |
|
- | |||||
| 13 | 5303007620 | Screw |
|
$ 9.31 | |||||
| 08010919 | Screw Front Panel |
|
- |
