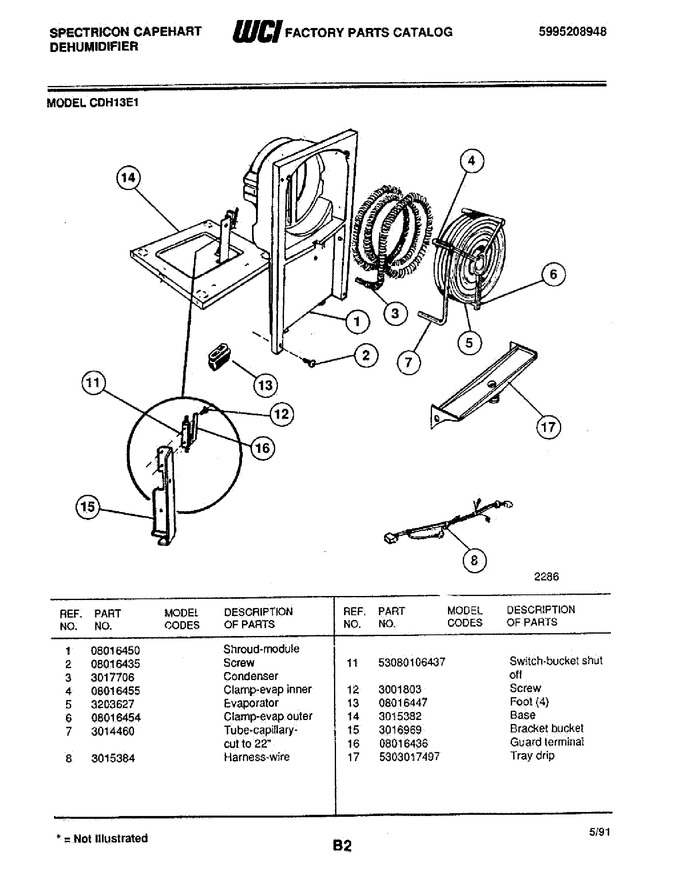

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Wrapper
03 - Fan
04 - Condenser
05 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud-module |
|
- | |||||
| 2 | 08016435 | Screw |
|
- | |||||
| 3 | 3017706 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp-evap Inner |
|
- | |||||
| 5 | 3203627 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp-evap Outer |
|
- | |||||
| 7 | 3014460 | Tube-capillary-cut To 22`` |
|
- | |||||
| 8 | 3015384 | Harness-wire |
|
- | |||||
| 11 | 5308016437 | Switch-bucket Shut-off |
|
$ 41.55 | |||||
| 12 | 3001803 | Screw |
|
- | |||||
| 13 | 08016447 | Foot |
|
- | |||||
| 14 | 3015382 | Base |
|
- | |||||
| 15 | 3016969 | Bracket Bucket |
|
- | |||||
| 16 | 08016436 | Guard-terminal |
|
- | |||||
| 17 | 5303017497 | Tray-drip |
|
- |
