01 - Base
02 - Body
03 - Control Panel
04 - Door
05 - Door
06 - Interlock Switch
07 - Internal Controls
08 - Internal Controls
09 - Oven
10 - Turntable
SELECT A DIAGRAM
New Model Search:

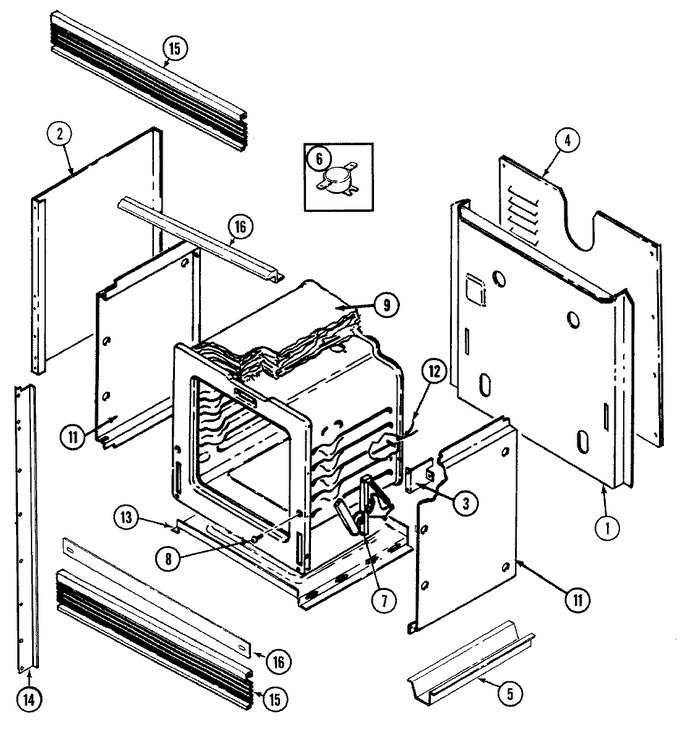

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F169-51 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F082-51 | Panel, Side | 01 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 4 | 4005F434-51 | Cover, Rear | 01 |
|
- | ||||
| 5 | 3826F015-45 | Extension | 01 |
|
- | ||||
| 6 | 7403P316-60 | Switch, Hi-limit | 01 |
|
$ 87.76 | ||||
| 7 | 7106P050-60 | Hinge----na | 01 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 9 | 4804F029-60 | Insulation, Wrap | 01 |
|
- | ||||
| 9 | 4804F030-60 | Insulation, Back & Bottom | 01 |
|
- | ||||
| 10 | 4005F354-70 | Strip, Bottom (blk) | 01 |
|
- | ||||
| 11 | 3804F108-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 12 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 01 |
|
Immediately | $ 39.55 | |||
| 13 | 4011F217-51 | Bottom, Main | 01 |
|
- | ||||
| 14 | 7750P090-60 | Extrusion (lt-blk) | 01 |
|
- | ||||
| 14 | 7750P089-60 | Extrusion (rt-blk) | 01 |
|
- | ||||
| 15 | 7756P097-60 | Extrusion, Vent (btm-blk) | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 16 | 7756P087-60 | Extrusion, Microwave (blk) | 01 |
|
- |
