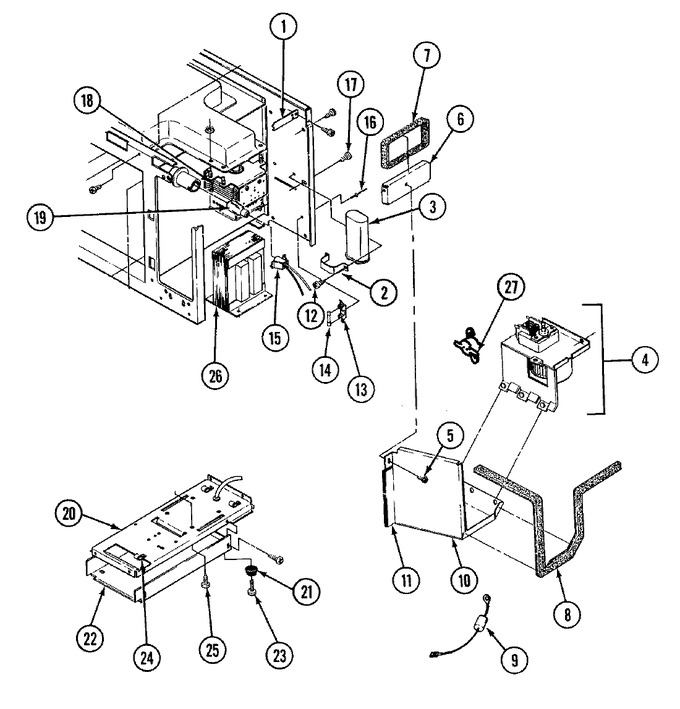

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base
02 - Body
03 - Control Panel
04 - Door
05 - Door
06 - Interlock Switch
07 - Internal Controls
08 - Internal Controls
09 - Oven
10 - Turntable
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y02020028 | Brace, Support (lower) | 1 |
|
- | ||||
| 2 | 02030123 | Bracket | 1 |
|
- | ||||
| 3 | 01010008 | Resistor, Bleeder | 1 |
|
- | ||||
| 3 | Y01020023 | Capacitor | 1 |
|
- | ||||
| 4 | Y01110016 | Wheel, Blower | 1 |
|
- | ||||
| 4 | 01110029 | Motor, Blower | 1 |
|
- | ||||
| 4 | 02171191 | Housing | 1 |
|
- | ||||
| 4 | 04021191 | Blower Assembly | 1 |
|
- | ||||
| 4 | Y02030144 | Bracket, Blower Support | 1 |
|
- | ||||
| 5 | 03010138 | Screw | 1 |
|
- | ||||
| 6 | Y02170111 | Support, Duct Magnetron | 1 |
|
- | ||||
| 7 | 02310109 | Tape, Foam | 1 |
|
- | ||||
| 8 | 02310070 | Tape, Foam | 1 |
|
- | ||||
| 9 | Y04010206 | Diode | 1 |
|
- | ||||
| 10 | Y04020842 | Duct Assembly, Magnetron | 1 |
|
- | ||||
| 11 | 02310071 | Tape, Foam | 1 |
|
- | ||||
| 12 | Y03020076 | Screw | 1 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note Clip, Fuse | 1 |
|
- | ||||
| 14 | Y01050005 | Fuse 15a 125v | 1 |
|
- | ||||
| 15 | 01100045 | Receptacle, Light | 1 |
|
- | ||||
| 16 | WP210720 | Rivet, Pop (Replaces: Y03060002) | 1 |
|
$ 12.14 | ||||
| 16 | 02040094 | Plate, Popcorn | 1 |
|
- | ||||
| 17 | WP8281227 | Screw (Replaces: Y03010144) | 1 |
|
$ 9.40 | ||||
| 18 | 01040004 | Magnetron | 1 |
|
- | ||||
| 19 | Y01060024 | Bulb, Light | 1 |
|
- | ||||
| 20 | Y02040101 | Plate, Component Mounting | 1 |
|
- | ||||
| 21 | 02230012 | Foot, Base | 1 |
|
- | ||||
| 22 | 02300039 | Cover, Mtg Plate | 1 |
|
- | ||||
| 23 | W11233072 | Screw (Replaces: Y03020068) | 1 |
|
Immediately | $ 12.62 | |||
| 24 | 03110022 | Clip, Wire Harness | 1 |
|
- | ||||
| 25 | 03010094 | Screw | 1 |
|
- | ||||
| 26 | 01130028 | Transformer, H.v. | 1 |
|
- | ||||
| 27 | Y04060532 | Hv Lead Wire (8 ``) | 1 |
|
- | ||||
| 27 | 01180010 | Switch, Temp Limit | 1 |
|
- | ||||
| 27 | 04010262 | Wire Harness | 1 |
|
- | ||||
| 27 | Y04060535 | Hv Lead Wire (16``) | 1 |
|
- |
