Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08013923 Support - Glass Appelez-nous -
2 3131771 Bumper (2) Appelez-nous -
3 3131766 Screw 6-32 X 3/8 (2) Appelez-nous -
4 3131767 Screw 8-18 X 1/2 Appelez-nous -
5 3202747 Handle Appelez-nous -
6 3205786 Frame Door Appelez-nous -
7 AP053033 Screw 8-15 X 3/8 Appelez-nous -
8 WP96160 Glass Outer   (Replaces: 10737) Special Order $ 10.54

9 3016955 Insulation Appelez-nous -
10 3016127 Panel-inner Appelez-nous -
11 08007939 Button Plug Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

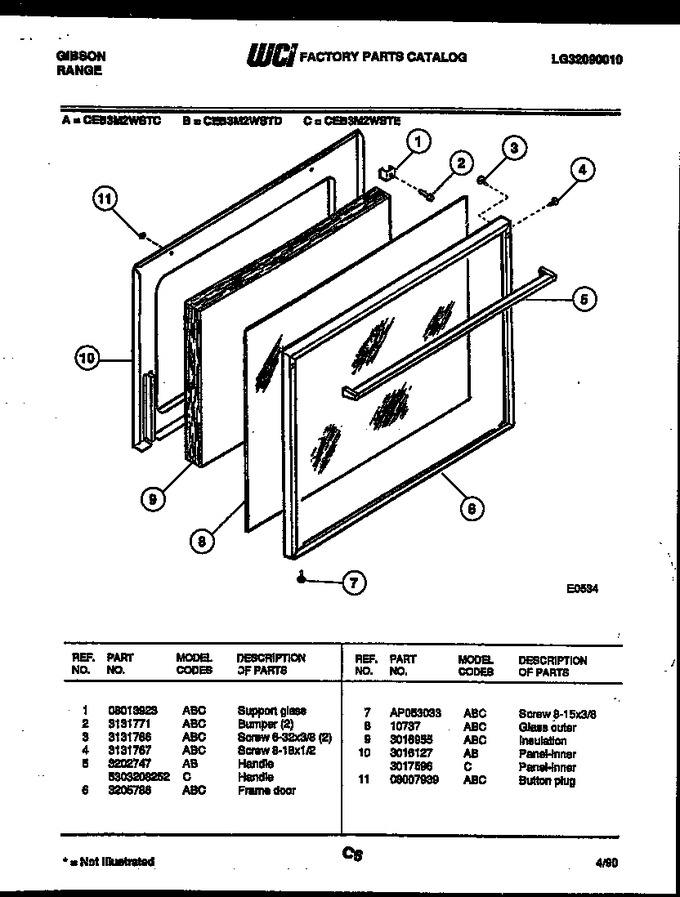

Diagram for CEB3M2WSTC
