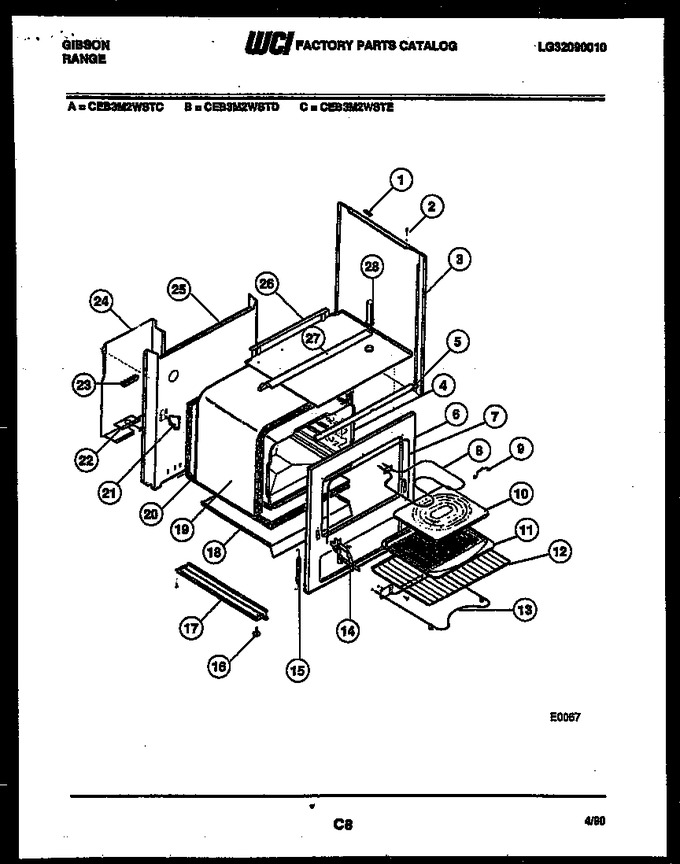

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet-main Top (2)		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Panel Bodyside		Appelez-nous	-
4	A51132002		Liner Rh Oven		Appelez-nous	-
5	3016950		Support-control Panel		Appelez-nous	-
6	A98389001		Frame-front		Appelez-nous	-
7	08013916		Seal - Door		Appelez-nous	-
8	3009293		Element-broil		Appelez-nous	-
9	3009445		Support-broil Element		Appelez-nous	-
10	A43001000		Grid-broiler		Appelez-nous	-
11	A53008000		Pan, Broiler		Appelez-nous	-
12	3016128		Rack-oven (2)		Appelez-nous	-
13	3009292		Element - Bake		Appelez-nous	-
14	3204670		Hinge-rh		Appelez-nous	-
15	3051079		Spring Door (2)		Appelez-nous	-
16	08008041		Leg - Leveling (4)		Appelez-nous	-
17	08068047		Base Rail		Appelez-nous	-
18	3016945		Pan-insulation		Appelez-nous	-
19	3016946		Insulation-wrap		Appelez-nous	-
20	3016947		Insulation-back		Appelez-nous	-
21	3051096		Support-oven		Appelez-nous	-
22	08011558		Support Conduit		Appelez-nous	-
23	3051098		Block Terminal Main		Appelez-nous	-
24	3203808		Cover-wire		Appelez-nous	-
25	3016944		Main Back		Appelez-nous	-
26	08013947		Burner Box Bottom		Appelez-nous	-
27	3016951		Shield Switch		Appelez-nous	-
28	3051064		Tube Oven Vent		Appelez-nous	-
14A	3204672		Hinge-lh		Appelez-nous	-
27A	3009582		Clip Bodyside Corner (non-illustrated)		Appelez-nous	-
27B	9126		Clip-capillary (non-illustrated)				$ 24.99
4A	A51133002		Liner Lh Oven		Appelez-nous	-
4B	A51151000		Liner Top Oven		Appelez-nous	-
4C	A51119002		Liner Back Oven		Appelez-nous	-
4D	A51101002		Liner Bottom Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
